DG444BDN-T1-E4 - Vishay

Description: 4 Circuit IC Switch 1:1 80Ohm 16-QFN (4x4)

Download DG444BDN-T1-E4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

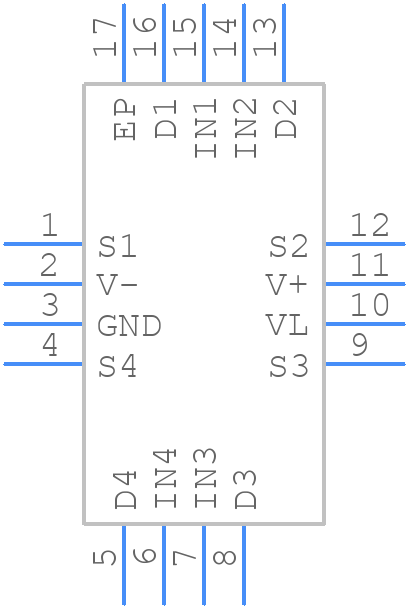

DG444BDN-T1-E4 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG444BDN-T1-E4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L_2024
click to zoom
3D Models
DG444BDN-T1-E4 - Vishay - 3D model - Quad Flat No-Lead - QFN 4x4-16L_2024
click to zoom

DG444BDN-T1-E4 Details

  • Manufacturer Part Number:

    DG444BDN-T1-E4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.48

  • Analog IC - Other Type:

    SPST

  • Moisture Sensitivity Level:

    1

  • Qualification Status:

    Not Qualified

  • Terminal Finish:

    Palladium/Gold (Pd/Au) - with Nickel (Ni) barrier

DG444BDN-T1-E4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG444BDN-T1-E4 is a standard SOIC-8 package with a minimum pad size of 1.5mm x 1.5mm and a maximum pad size of 2.5mm x 2.5mm, with a 0.5mm spacing between pads.
  • To ensure reliable operation of the DG444BDN-T1-E4 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
  • The maximum allowable power dissipation for the DG444BDN-T1-E4 is 1.4W, and it is recommended to derate the power dissipation by 2.5mW/°C above 25°C to ensure reliable operation.
  • Yes, the DG444BDN-T1-E4 can be used in high-frequency applications up to 100MHz, but it is recommended to follow proper PCB layout and design practices to minimize parasitic inductance and capacitance.
  • Yes, the DG444BDN-T1-E4 is compatible with lead-free soldering processes, and it is recommended to follow the manufacturer's recommended soldering profile to ensure reliable assembly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG444BDN-T1-E4 Overview

Use the download button to access the DG444BDN-T1-E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG444, or try a keyword search, such as Multiplexers or Switches
