DG445DJ-E3 - Vishay

Description: Quad SPST CMOS Analog Switches

Download DG445DJ-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DG445DJ-E3 - Vishay - PCB symbol
click to zoom

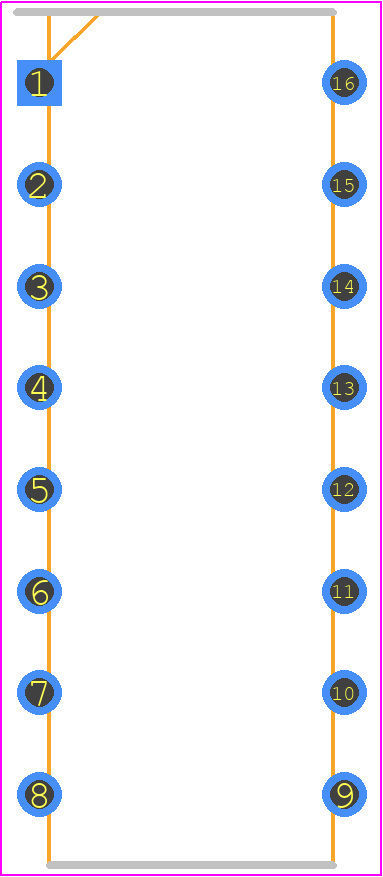

PCB Footprints
DG445DJ-E3 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP 16-LEAD
click to zoom
3D Models
DG445DJ-E3 - Vishay - 3D model - Dual-In-Line Packages - PDIP 16-LEAD
click to zoom

DG445DJ-E3 Details

  • Manufacturer Part Number:

    DG445DJ-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    20.13 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance-Max (Ron):

    85 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    210 ns

  • Switch-on Time-Max:

    250 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

DG445DJ-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG445DJ-E3 is a standard SOIC-8 package with a minimum pad size of 1.5 mm x 1.5 mm and a maximum pad size of 2.5 mm x 2.5 mm, with a 0.5 mm spacing between pads.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the power dissipation of the DG445DJ-E3 according to the thermal derating curve provided in the datasheet, and to ensure good thermal conduction between the device and the PCB.
  • The recommended input capacitance for the DG445DJ-E3 is 10 nF to 100 nF, depending on the specific application requirements and noise tolerance. A larger input capacitance can help to reduce noise and improve signal integrity.
  • Yes, the DG445DJ-E3 can be used in switching applications, but it is recommended to limit the switching frequency to below 100 kHz to avoid excessive power dissipation and ensure reliable operation.
  • To protect the DG445DJ-E3 from ESD damage, it is recommended to handle the device with ESD-safe materials, use ESD-protective packaging, and follow proper ESD-handling procedures during assembly and testing.
