Part Image

DG469EY-T1-E3 - Vishay

Description: Analog Switch ICs

Download DG469EY-T1-E3 Model

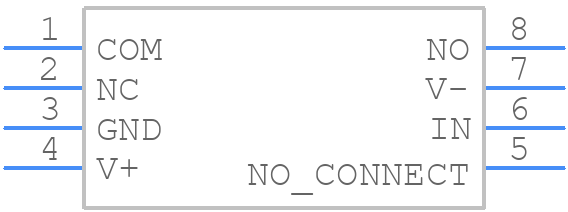

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG469EY-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Narrow SOIC21
click to zoom
3D Models
DG469EY-T1-E3 - Vishay  - 3D model - Small Outline Packages - 8-Pin Narrow SOIC21
click to zoom

DG469EY-T1-E3 Details

  • Manufacturer Part Number:

    DG469EY-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOIC-8

  • Country Of Origin:

    Israel

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -16.5 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    57 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    6 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    108 ns

  • Switch-on Time-Max:

    166 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

DG469EY-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the DG469EY-T1-E3 is -40°C to 125°C.
  • Yes, the DG469EY-T1-E3 is suitable for high-frequency applications up to 1 GHz due to its low capacitance and high isolation resistance.
  • Yes, the DG469EY-T1-E3 is RoHS (Restriction of Hazardous Substances) compliant, meeting the EU's directive on the restriction of hazardous substances in electrical and electronic equipment.
  • The typical lead time for the DG469EY-T1-E3 varies depending on the region and availability, but it's usually around 8-12 weeks.
  • Yes, the DG469EY-T1-E3 meets the requirements for automotive applications, including AEC-Q101 qualification, and is suitable for use in automotive systems.
