DG506ACWI+T - Analog Devices

Description: Multiplexer Switch ICs Monolithic CMOS Analog Multiplexers

Download DG506ACWI+T Model

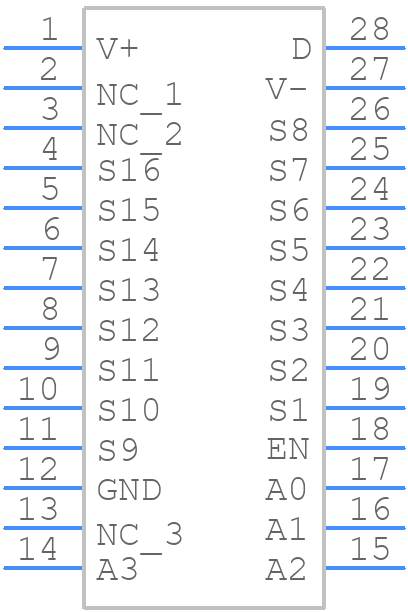

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG506ACWI+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W28-5
click to zoom
3D Models
DG506ACWI+T - Analog Devices  - 3D model - Small Outline Packages - W28-5
click to zoom

DG506ACWI+T Details

  • Manufacturer Part Number:

    DG506ACWI+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SOIC_W-300_MIL

  • Package Description:

    SOP, SOP28,.4

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SOIC_W-300_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1988-04-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.905 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Channels:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    16.2 Ω

  • On-state Resistance-Max (Ron):

    450 Ω

  • Operating Temperature-Max:

    70 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.67 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.3 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    400 ns

  • Switch-on Time-Max:

    1000 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.495 mm

DG506ACWI+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the DG506ACWI+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to keep the signal traces as short as possible.
  • The DG506ACWI+T requires a single 5V power supply, and it's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output. Power sequencing is not critical, but it's recommended to power up the VDD pin before the logic inputs to prevent unwanted switching.
  • The DG506ACWI+T can switch analog signals up to 100 MHz, but the actual frequency limit depends on the specific application, signal amplitude, and PCB layout. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency for a specific use case.
  • To minimize charge injection, it's recommended to use a low-capacitance analog signal source, keep the signal traces as short as possible, and use a shielded cable or a guard ring around the signal traces. Additionally, the DG506ACWI+T has a low charge injection of 0.5 pC, which helps to minimize the impact on the analog signal.
  • The recommended operating temperature range for the DG506ACWI+T is -40°C to +125°C, but the device can operate up to +150°C with reduced performance. It's recommended to consult the datasheet and perform testing to determine the optimal operating temperature range for a specific application.
