DG508ADY+T footprint, schematic symbol and 3D model by Analog Devices

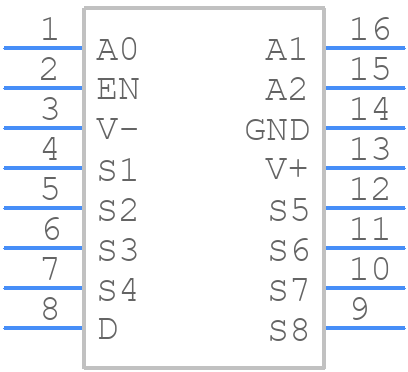

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG508ADY+T
Part Number DG508ADY+T
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-SOIC_2025-4
Released Date Mar 28, 2025
Last Modified Date Mar 28, 2025 6:09 AM UTC
Pinout / Pin List Click Here (Member Only)

DG508ADY+T Details

Manufacturer Part Number:
DG508ADY+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
16-SOIC_N-150_MIL
Package Description:
SOP, SOP16,.25
Pin Count:
16
Manufacturer Package Code:
16-SOIC_N-150_MIL
Reach Compliance Code:
Compliant
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
HTS Code:
8542.39.00.60
Date Of Intro:
1999-05-28
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
9.9 mm
Moisture Sensitivity Level:
1
Neg Supply Voltage-Max (Vsup):
-18 V
Neg Supply Voltage-Min (Vsup):
-4.5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Normal Position:
NC
Number of Channels:
8
Number of Functions:
1
Number of Terminals:
16
Off-state Isolation-Nom:
68 dB
On-state Resistance Match-Nom:
10.2 Ω
On-state Resistance-Max (Ron):
350 Ω
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output:
COMMON OUTPUT
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Signal Current-Max:
0.02 A
Supply Current-Max (Isup):
0.2 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
1000 ns
Switch-on Time-Max:
1500 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

DG508ADY+T Frequently Asked Questions (FAQs)

A good PCB layout for the DG508ADY+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. Additionally, it's recommended to place the device close to the analog signal sources and use shielding to reduce electromagnetic interference.
To ensure proper powering and decoupling of the DG508ADY+T, use a low-impedance power supply, add decoupling capacitors (e.g., 0.1 μF and 10 μF) close to the device's power pins, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
While the datasheet doesn't specify a maximum operating frequency, the DG508ADY+T is designed for analog switch applications up to 100 MHz. However, the actual operating frequency may be limited by the specific application, PCB layout, and signal integrity. It's recommended to consult with Analog Devices' application engineers or perform simulations to determine the maximum operating frequency for a specific design.
To handle ESD protection for the DG508ADY+T, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider adding external ESD protection devices (e.g., TVS diodes) to the PCB design. Additionally, ensure that the device is powered down during handling and assembly to prevent damage from static electricity.
To manage thermal issues with the DG508ADY+T, ensure good airflow around the device, use a heat sink or thermal pad if necessary, and avoid high-power dissipation or high-temperature operating conditions. The device's junction temperature should not exceed 150°C, and the storage temperature should be within -65°C to 150°C.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

DG508ADY+T Overview

Use the download button to access the DG508ADY+T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DG508, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
