DG509ADY+ - Analog Devices

Description: Monolithic CMOS Analog Multiplexers, 5nA, 10μA, 0.2mA, ±4.5V to ±18V, -40°C to +85°C,

Download DG509ADY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

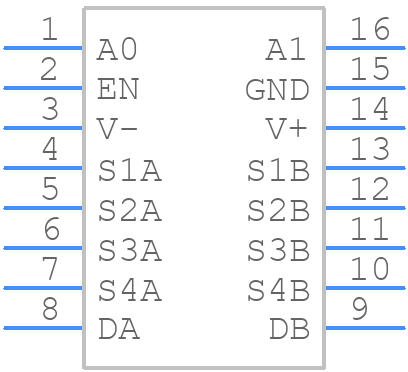

DG509ADY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
DG509ADY+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S16-5
click to zoom
3D Models
DG509ADY+ - Analog Devices - 3D model - Small Outline Packages - S16-5
click to zoom

DG509ADY+ Details

  • Manufacturer Part Number:

    DG509ADY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -18 V

  • Neg Supply Voltage-Min (Vsup):

    -4.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Normal Position:

    NC

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    68 dB

  • On-state Resistance Match-Nom:

    27 Ω

  • On-state Resistance-Max (Ron):

    450 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    1000 ns

  • Switch-on Time-Max:

    1500 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DG509ADY+ Frequently Asked Questions (FAQs)

  • To minimize signal degradation and noise, it's recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and use a solid ground plane. Route digital signals away from analog signals, and use shielding or guard rings to reduce noise coupling. Additionally, place decoupling capacitors close to the device and use a low-ESR capacitor for the VDD pin.
  • The DG509ADY+ requires a single 3.3V or 5V power supply. Ensure that the power supply is clean and well-regulated, with a minimum of 10uF decoupling capacitance on the VDD pin. Power sequencing is not critical, but it's recommended to power up the device after the analog and digital supplies are stable. Avoid powering down the device while it's switching, as this can cause damage.
  • The DG509ADY+ can operate up to 100MHz, but its performance may degrade at higher frequencies due to increased power consumption, reduced signal-to-noise ratio, and potential oscillations. To ensure optimal performance, operate the device at frequencies below 50MHz, and consider using a lower-frequency clock or a clock divider if necessary.
  • The DG509ADY+ has a maximum junction temperature of 150°C. To ensure proper thermal management, use a heat sink or a thermally conductive pad on the exposed pad, and keep the device away from heat sources. Avoid operating the device in high-temperature environments, and ensure good airflow around the device. Monitor the device's temperature and reduce power consumption or provide additional cooling if necessary.
  • The DG509ADY+ has built-in ESD protection diodes on all pins, but it's still recommended to follow proper ESD handling procedures during assembly and testing. To prevent latch-up, avoid applying voltages that exceed the maximum ratings, and ensure that the device is powered up and down slowly. Use a latch-up protection circuit or a current-limiting resistor if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DG509ADY+ Overview

Use the download button to access the DG509ADY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG509, or try a keyword search, such as Multiplexers or Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
