A good PCB layout for the DG612DY-E3 should ensure that the high-frequency signals are kept away from the low-frequency signals, and that the analog and digital grounds are separated. A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Additionally, the layout should minimize the length of the traces and avoid sharp corners to reduce electromagnetic interference (EMI).
The DG612DY-E3 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking. A thermal pad or a heat sink with a thermal conductivity of at least 1 W/m-K is recommended. The heat sink should be connected to a solid ground plane to dissipate heat efficiently. Additionally, ensure that the surrounding components do not obstruct airflow or heat dissipation.
The DG612DY-E3 is a high-speed analog switch, and proper termination is crucial for optimal performance. For the input, a 50Ω termination resistor is recommended to match the impedance of the signal source. For the output, a 50Ω to 75Ω termination resistor is recommended to match the impedance of the load. Additionally, consider adding a series resistor and capacitor to filter out high-frequency noise and ringing.
To ensure the reliability and longevity of the DG612DY-E3 in harsh environments, follow proper handling and storage procedures. Avoid exposing the device to extreme temperatures, humidity, or mechanical stress. Use a conformal coating or potting compound to protect the device from moisture and contaminants. Additionally, consider using a device with a higher temperature rating or a more robust package option, such as the DG612DY-E3V, which is designed for automotive applications.
The DG612DY-E3 is a sensitive device and requires proper ESD protection and handling precautions. Use an ESD wrist strap or mat when handling the device, and ensure that the workspace is ESD-safe. Avoid touching the device's pins or exposed metal surfaces, and use a vacuum pickup or tweezers to handle the device. Store the device in an ESD-safe package or bag, and follow proper soldering and desoldering procedures to avoid damaging the device.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DG612DY-E3 Overview

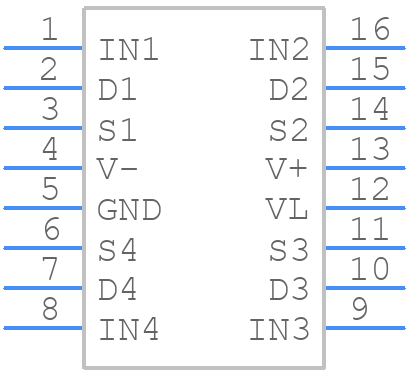

Use the download button to access the DG612DY-E3 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DG612,
or try a keyword search, such as Multiplexers or Switches
