DG9233EDY-T1-GE3 - Vishay

Description: Analog Switch ICs Dual SPST Switch 1pC charge injection

Download DG9233EDY-T1-GE3 Model

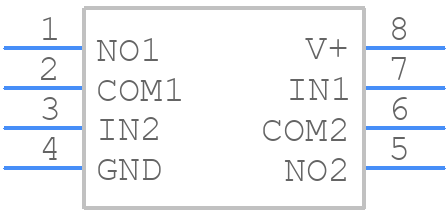

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG9233EDY-T1-GE3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SOIC (NARROW): 8-LEAD_a
click to zoom

DG9233EDY-T1-GE3 Details

  • Manufacturer Part Number:

    DG9233EDY-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.28

  • Additional Feature:

    When V+=5V, Analog input voltage is from 0 to 5V

  • Analog IC - Other Type:

    SPST

  • Input Voltage-Max:

    3 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    80 dB

  • On-state Resistance Match-Nom:

    0.4 Ω

  • On-state Resistance-Max (Ron):

    50 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    200 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

DG9233EDY-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DG9233EDY-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides guidelines for PCB layout and assembly.
  • The DG9233EDY-T1-GE3 has a thermal pad on the bottom of the package. To ensure proper thermal management, it is recommended to use a thermal interface material (TIM) and a heat sink, and to follow the guidelines outlined in the Vishay Intertechnologies' application note AN81142.
  • The maximum operating temperature range for the DG9233EDY-T1-GE3 is -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the device's power dissipation accordingly to ensure reliable operation.
  • Yes, the DG9233EDY-T1-GE3 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q101 standard and is PPAP (Production Part Approval Process) capable.
  • The DG9233EDY-T1-GE3 is a moisture-sensitive device. It's recommended to store the devices in their original packaging, in a dry and clean environment, and to follow the guidelines outlined in the JEDEC standard J-STD-033 for handling and storage of moisture-sensitive devices.
