DG9408EDN-T1-GE4 - Vishay

Description: Multiplexer Switch ICs 8-Ch Single Ended Multiplexer 3-16V

Download DG9408EDN-T1-GE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

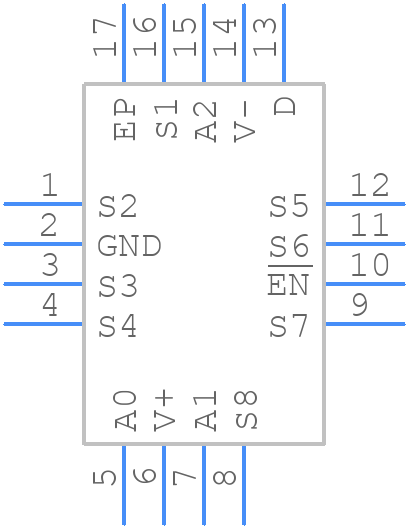

DG9408EDN-T1-GE4 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG9408EDN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L--
click to zoom
3D Models
DG9408EDN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - QFN 4x4-16L--
click to zoom

DG9408EDN-T1-GE4 Details

  • Manufacturer Part Number:

    DG9408EDN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, QFN-16

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-07-31

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATE WITH 3V, 5V AND 12V SINGLE SUPPLY

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    83 dB

  • On-state Resistance Match-Nom:

    3.6 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    43 ns

  • Switch-on Time-Max:

    76 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

DG9408EDN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG9408EDN-T1-GE4 is a standard QFN24 package with a 4x4mm body size and 0.5mm pitch. A recommended land pattern is available in the Vishay Intertechnologies application note or can be provided by the manufacturer upon request.
  • To ensure reliable operation of the DG9408EDN-T1-GE4 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The DG9408EDN-T1-GE4 has built-in ESD protection, but it is still recommended to follow standard ESD handling precautions when handling the device, such as using an ESD wrist strap, working on an ESD-safe surface, and minimizing static-generating activities.
  • The DG9408EDN-T1-GE4 is an AEC-Q100 qualified device, making it suitable for use in automotive applications. However, it is recommended to consult with Vishay Intertechnologies and perform thorough testing to ensure the device meets the specific requirements of the automotive application.
  • The recommended soldering profile for the DG9408EDN-T1-GE4 is a standard reflow soldering profile with a peak temperature of 260°C and a dwell time of 20-30 seconds. It is recommended to consult the Vishay Intertechnologies application note or the manufacturer's soldering guidelines for more detailed information.
