DG9409EDN-T1-GE4 - Vishay

Description: Dual 4:1 Analog Multiplexer 3-16V QFN16

Download DG9409EDN-T1-GE4 Model

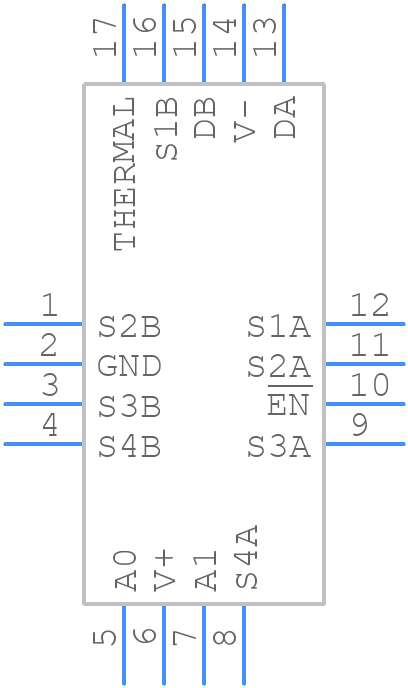

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DG9409EDN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 4x4-16L
click to zoom
3D Models
DG9409EDN-T1-GE4 - Vishay  - 3D model - Quad Flat No-Lead - QFN 4x4-16L
click to zoom

DG9409EDN-T1-GE4 Details

  • Manufacturer Part Number:

    DG9409EDN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, HALOGEN FREE AND ROHS COMPLIANT, QFN-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2016-07-31

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATE WITH 3V, 5V AND 12V SINGLE SUPPLY

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    83 dB

  • On-state Resistance Match-Nom:

    3.6 Ω

  • On-state Resistance-Max (Ron):

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    43 ns

  • Switch-on Time-Max:

    76 ns

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

DG9409EDN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG9409EDN-T1-GE4 is a standard QFN16 package with a 3x3 mm body size and 0.5 mm pitch. A recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from the manufacturer's technical support.
  • To ensure reliable operation of the DG9409EDN-T1-GE4 in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The maximum allowable power dissipation for the DG9409EDN-T1-GE4 is dependent on the operating temperature and PCB design. According to the datasheet, the maximum power dissipation is 1.4 W at 25°C. However, this value can be derated based on the operating temperature and PCB thermal resistance. It is recommended to consult the datasheet and application notes for more information.
  • The DG9409EDN-T1-GE4 is an AEC-Q100 qualified device, making it suitable for use in automotive applications. However, it is essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards and regulations.
  • The DG9409EDN-T1-GE4 is a moisture-sensitive device and should be stored in a dry, nitrogen-filled package or a dry cabinet with a relative humidity of less than 20%. It is recommended to follow the JEDEC standard J-STD-033 for handling and storage of moisture-sensitive devices.
