DG9424DQ-T1-E3 - Vishay

Description: Low-Voltage, Dual Supply, Low RON, Quad SPST Analog Switches

Download DG9424DQ-T1-E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

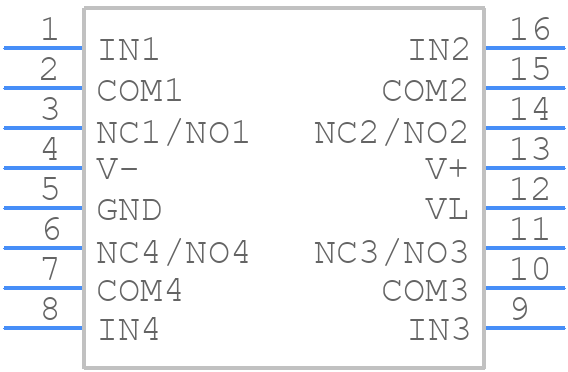

Symbol
DG9424DQ-T1-E3 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG9424DQ-T1-E3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - 16-pin TSSOP
click to zoom
3D Models
DG9424DQ-T1-E3 - Vishay - 3D model - Small Outline Packages - 16-pin TSSOP
click to zoom

DG9424DQ-T1-E3 Details

  • Manufacturer Part Number:

    DG9424DQ-T1-E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 2.7V TO 12V SINGLE SUPPLY

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -6 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    56 dB

  • On-state Resistance-Max (Ron):

    3.3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    44 ns

  • Switch-on Time-Max:

    65 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DG9424DQ-T1-E3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DG9424DQ-T1-E3 is a 4-pad QFN package with a 2.5mm x 2.5mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note or can be obtained from their technical support team.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder paste with a melting point compatible with the device's temperature rating. It's also recommended to use a reflow oven with a controlled atmosphere to minimize oxidation.
  • The DG9424DQ-T1-E3 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • The DG9424DQ-T1-E3 is rated for a relative humidity of up to 60% at 40°C. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the device, to ensure reliable operation in high-humidity environments.
  • The recommended storage condition for the DG9424DQ-T1-E3 is in a dry, cool place with a relative humidity of 50% or less. Avoid storing the devices in direct sunlight, high temperatures, or humid environments to prevent degradation or damage.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DG9424DQ-T1-E3 Overview

Use the download button to access the DG9424DQ-T1-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG942, or try a keyword search, such as Multiplexers or Switches
