DG9424EDQ-T1-GE3 - Vishay

Description: Analog Switch ICs Mono quad SPST Pd 450mW TSSOP-16

Download DG9424EDQ-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

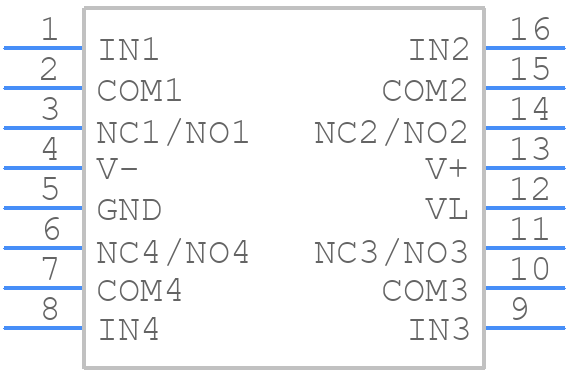

DG9424EDQ-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
DG9424EDQ-T1-GE3 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16-LEAD
click to zoom
3D Models
DG9424EDQ-T1-GE3 - Vishay - 3D model - Small Outline Packages - TSSOP 16-LEAD
click to zoom

DG9424EDQ-T1-GE3 Details

  • Manufacturer Part Number:

    DG9424EDQ-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    8

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Neg Supply Voltage-Max (Vsup):

    -8 V

  • Neg Supply Voltage-Min (Vsup):

    -3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Normal Position:

    NC

  • Number of Channels:

    4

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    56 dB

  • On-state Resistance-Max (Ron):

    3.3 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Signal Current-Max:

    0.2 A

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    67 ns

  • Switch-on Time-Max:

    81 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

DG9424EDQ-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the DG9424EDQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN81142, which provides detailed guidelines for PCB layout and assembly.
  • The DG9424EDQ-T1-GE3 has a thermal pad that should be connected to a thermal plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The DG9424EDQ-T1-GE3 has an operating temperature range of -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this range.
  • The DG9424EDQ-T1-GE3 is a commercial-grade device, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with Vishay Intertechnologies' sales team or a qualified representative to discuss specific requirements and potential alternatives.
  • Follow the recommended soldering profile and assembly guidelines provided in the Vishay Intertechnologies' application note AN81142. Ensure the PCB is designed with a suitable solder mask and that the device is handled and stored properly to prevent damage.
