The recommended PCB footprint for the DG9426EDQ-T1-GE3 can be found in the Vishay Intertechnologies' application note AN10343, which provides a detailed layout and land pattern recommendation for optimal performance and reliability.
To ensure proper soldering and reflow, follow the recommended soldering profile and temperature guidelines provided in the Vishay Intertechnologies' application note AN10343. Additionally, ensure the PCB is designed with a suitable thermal relief pattern to prevent thermal stress on the component.
The DG9426EDQ-T1-GE3 is rated for operation from -40°C to 125°C. However, it's essential to note that the device's performance and reliability may degrade if operated at the extreme ends of this temperature range for extended periods.
The DG9426EDQ-T1-GE3 is not hermetically sealed, so it's not recommended for use in high-humidity environments. If your application requires operation in humid conditions, consider using a hermetically sealed version of the device or taking additional precautions to protect the component from moisture.
To prevent damage and ensure the component's reliability, store the DG9426EDQ-T1-GE3 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical contacts to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DG9426EDQ-T1-GE3 Overview

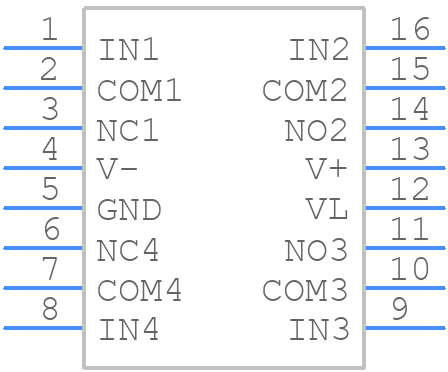

Use the download button to access the DG9426EDQ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DG942,
or try a keyword search, such as Multiplexers or Switches
