A good PCB layout for the DGD0503FN-7 should minimize parasitic inductance and capacitance. Place the device close to the power source, use short and wide traces, and avoid vias under the device. A 4-layer PCB with a solid ground plane is recommended.
Proper thermal management is crucial for the DGD0503FN-7. Ensure good thermal contact between the device and the PCB, use a thermal pad or thermal interface material, and provide adequate airflow. The device's thermal pad should be connected to a solid ground plane or a thermal relief pattern.
The DGD0503FN-7 has an operating temperature range of -55°C to 150°C. However, the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
Yes, the DGD0503FN-7 is suitable for high-frequency switching applications up to 100 MHz. However, the device's performance may degrade at very high frequencies due to parasitic inductance and capacitance. Ensure proper PCB layout and decoupling to minimize these effects.
The DGD0503FN-7 has an integrated ESD protection diode, but additional external ESD protection measures may be necessary depending on the application. Follow proper ESD handling procedures during assembly and testing, and consider adding external ESD protection devices if required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGD0503FN-7 Overview

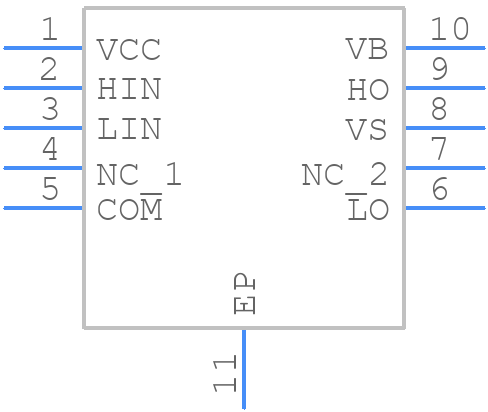

Use the download button to access the DGD0503FN-7 schematic symbol, PCB footprint, and 3D model.
