DGD0504FN-7 - Diodes Incorporated

Description: Gate Drivers HV Gate Driver

Download DGD0504FN-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

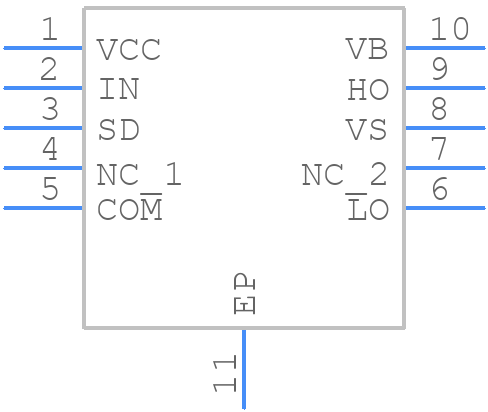

DGD0504FN-7 - Diodes Incorporated PCB footprint - Small Outline No-lead - Small Outline No-lead - W-DFN3030-10 (Type TH)
click to zoom
3D Models
DGD0504FN-7 - Diodes Incorporated  - 3D model - Small Outline No-lead - W-DFN3030-10 (Type TH)
click to zoom

DGD0504FN-7 Details

  • Manufacturer Part Number:

    DGD0504FN-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WDFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Built-in Protections:

    TRANSIENT

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.22 µs

  • Turn-on Time:

    0.82 µs

  • Width:

    3 mm

DGD0504FN-7 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DGD0504FN-7 is a standard SOT23-6 package with a 1.5mm x 1.5mm body size. The datasheet provides a recommended land pattern and soldering guidelines.
  • To ensure proper biasing, follow the datasheet's recommended operating conditions and application circuits. Typically, a 2.5V to 5.5V supply voltage and a 10kΩ to 100kΩ pull-up resistor are used. Consult the datasheet for specific biasing requirements.
  • The maximum allowable power dissipation for the DGD0504FN-7 is 150mW. Ensure that the device operates within this limit to prevent overheating and damage.
  • The DGD0504FN-7 is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments.
