The recommended operating temperature range for the DGD0507AFN-7 is -40°C to 125°C.
To ensure reliability, follow the recommended derating guidelines for the device, and consider using thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature within the recommended range.
The maximum allowable power dissipation for the DGD0507AFN-7 is 1.5W. However, this value may vary depending on the operating conditions and thermal management.
Yes, the DGD0507AFN-7 is suitable for switching regulator applications due to its fast switching speed and low voltage drop. However, ensure that the device is properly biased and that the switching frequency is within the recommended range.
To protect the DGD0507AFN-7 from ESD, follow proper handling and storage procedures, use ESD-safe equipment and materials, and consider adding ESD protection devices or circuits in the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGD0507AFN-7 Overview

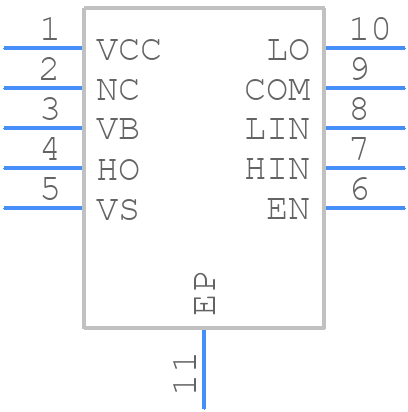

Use the download button to access the DGD0507AFN-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGD05,
or try a keyword search, such as MOSFET Drivers
