A good PCB layout for the DGD2136MS28-13 should minimize parasitic inductance and capacitance. Keep the input and output traces short and separate, use a solid ground plane, and avoid vias under the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation at high temperatures, make sure to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Use a suitable thermal interface material, and consider using a heat sink or a thermally conductive PCB material. Also, ensure good airflow around the device.
The maximum safe operating area (SOA) for the DGD2136MS28-13 is not explicitly stated in the datasheet. However, it's essential to ensure that the device operates within the recommended voltage and current limits to prevent damage. Consult with Diodes Incorporated or a qualified engineer for specific guidance on SOA.
The DGD2136MS28-13 is a commercial-grade device, and its suitability for high-reliability or automotive applications depends on the specific requirements. Diodes Incorporated may offer automotive-grade or high-reliability versions of this device or similar products. Consult with Diodes Incorporated or a qualified engineer for specific guidance.
The DGD2136MS28-13 has an integrated ESD protection circuit, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, tools, and equipment, and ensure that the device is properly grounded during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGD2136MS28-13 Overview

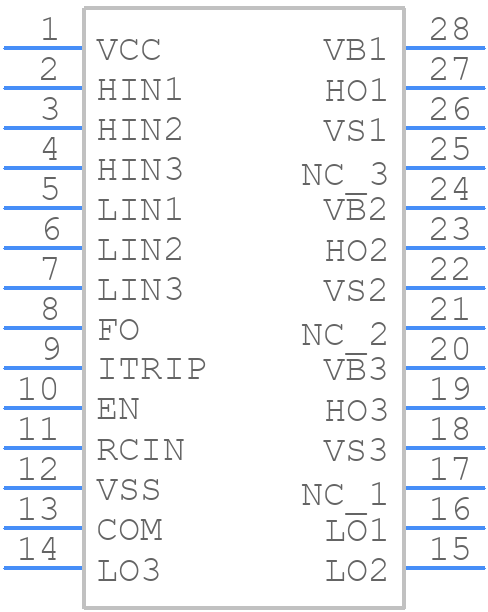

Use the download button to access the DGD2136MS28-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGD21,
or try a keyword search, such as MOSFET Drivers
