Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce parasitic inductance and ensure optimal performance. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
Proper thermal management can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from heat sources. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
The maximum allowable voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the specified range.
The DGD2388MS20-13 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper thermal management when operating in high-temperature environments.
Troubleshooting issues with the DGD2388MS20-13 can be done by checking the input voltage, output voltage, and current consumption. Ensure that the device is properly soldered, and the PCB layout is correct. Use an oscilloscope to check for voltage spikes, ringing, or other anomalies. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGD2388MS20-13 Overview

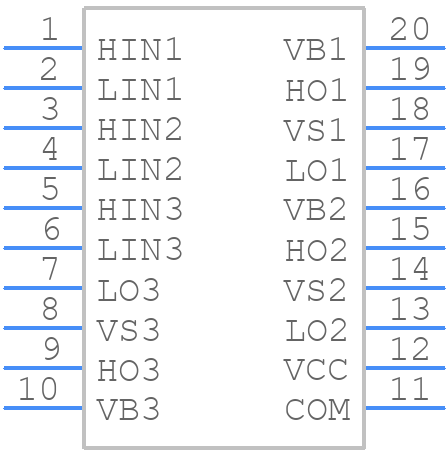

Use the download button to access the DGD2388MS20-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGD23,
or try a keyword search, such as MOSFET Drivers
