Part Image

DGPS2.5FV-5.0-04P - Degson

Description: PCB terminal blocks，Rated current：20A，Rated voltage（III/2）：400V，Cross section：2.5mm²，Pitch：5.0mm，Connection method：PUSH-SNAP spring connection，Color：Green，Contact surface：Tin

Download DGPS2.5FV-5.0-04P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DGPS2.5FV-5.0-04P - Degson - PCB symbol
click to zoom
PCB Footprints

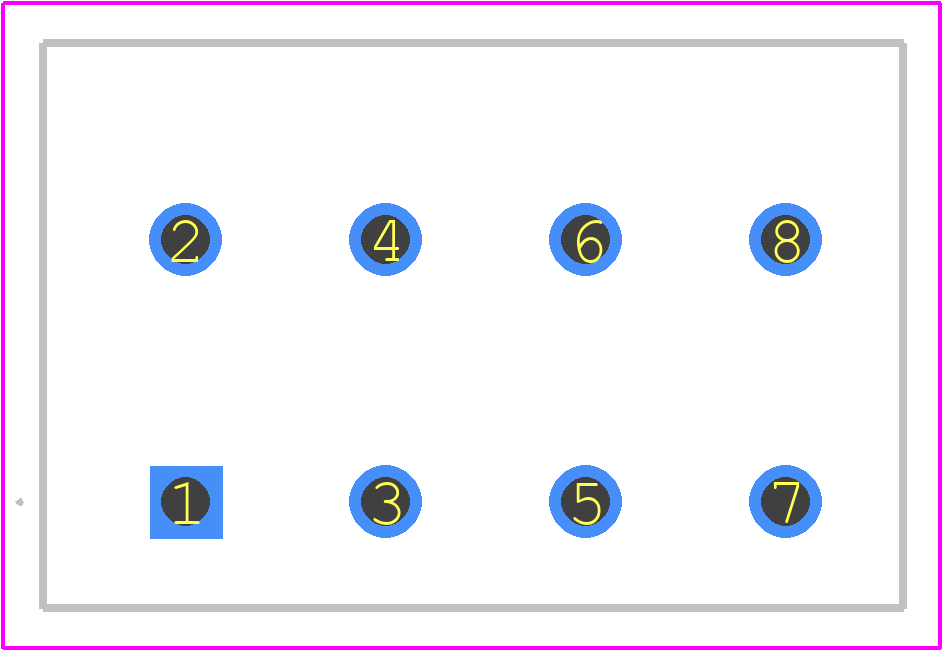

DGPS2.5FV-5.0-04P - Degson PCB footprint - Other - Other - DGPS2.5FV-5.0-04P-1
click to zoom
3D Models
DGPS2.5FV-5.0-04P - Degson - 3D model - Other - DGPS2.5FV-5.0-04P-1
click to zoom

DGPS2.5FV-5.0-04P Details

  • Manufacturer Part Number:

    DGPS2.5FV-5.0-04P

  • Manufacturer:

    Degson Electronics Co Ltd

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DGPS2.5FV-5.0-04P Overview

Use the download button to access the DGPS2.5FV-5.0-04P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGPS2, or try a keyword search, such as Other Circular Connectors
