Delta Electronics provides a reference design guide for the DH06S1224A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The selection of input and output capacitors depends on various factors, including the input voltage, output voltage, and ripple current requirements. Delta Electronics recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the input voltage. The output capacitors should be selected based on the output voltage and ripple current requirements.
The DH06S1224A has a maximum allowable ambient temperature of 80°C, with a derating of 2.5% per °C above 60°C. It's essential to ensure proper airflow and thermal management to maintain the module's reliability and performance.
The DH06S1224A has built-in OVP and UVP circuits, but external components may be required to customize the protection thresholds. Delta Electronics recommends using external resistors and Zener diodes to set the OVP and UVP thresholds according to the specific application requirements.
The recommended input voltage range for the DH06S1224A is 36V to 72V, with a maximum input voltage of 80V. Operating the module outside this range may affect its performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DH06S1224A Overview

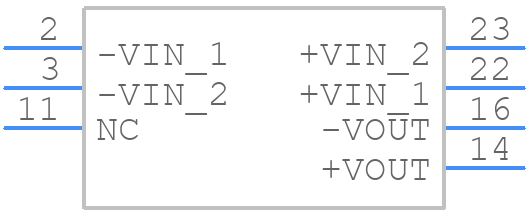

Use the download button to access the DH06S1224A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DH06S,
or try a keyword search, such as Power Supply Modules
