Part Image

DH06S2424A - Delta Electronics

Description: Isolated DC/DC Converters - Through Hole DC/DC Converter, 24Vout, 6W

Download DH06S2424A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

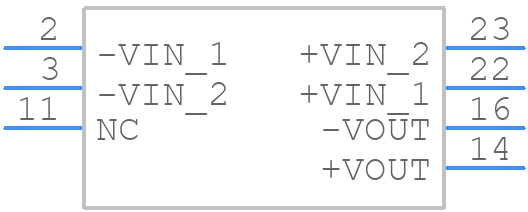

Symbol
DH06S2424A - Delta Electronics - PCB symbol
click to zoom
PCB Footprints
DH06S2424A - Delta Electronics PCB footprint - Other - Other - DH06S2424A-1
click to zoom
3D Models
DH06S2424A - Delta Electronics - 3D model - Other - DH06S2424A-1
click to zoom

DH06S2424A Details

  • Manufacturer Part Number:

    DH06S2424A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P8

  • Length:

    31.8 mm

  • Load Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

DH06S2424A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • A soft-start circuit can be implemented to limit the inrush current during start-up. A capacitor can be added to the VIN pin to filter out noise and ensure reliable start-up.
  • The maximum capacitance value for the output capacitors is 220uF. Exceeding this value may cause instability or oscillation in the converter.
  • It is not recommended to use a different inductor value or type than specified in the datasheet. The inductor value and type are carefully selected to ensure optimal performance and stability of the converter.
  • Check the input voltage, output voltage, and feedback voltage to ensure they are within the specified ranges. Verify that the feedback resistors are correctly connected and that the output capacitors are of the correct value and type.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DH06S2424A Overview

Use the download button to access the DH06S2424A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DH06S, or try a keyword search, such as Power Supply Modules
