Delta Electronics provides a reference design guide for the DH06S4805A, which includes recommended PCB layout and thermal design considerations. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. Delta Electronics recommends using capacitors with a voltage rating of at least 1.5 times the input voltage and a ripple current rating of at least 2 times the output current. Additionally, the output capacitors should have a low ESR to minimize voltage ripple.
The DH06S4805A has a maximum allowable ambient temperature of 80°C, with a derating of 2.5% per °C above 60°C. It's essential to ensure that the module operates within the specified temperature range to maintain reliability and performance.
The DH06S4805A has built-in OVP and UVP circuits, but they can be adjusted or customized using external components. Delta Electronics recommends using a voltage supervisor IC, such as the TLV703, to implement OVP and UVP. The voltage supervisor IC can be connected to the module's enable pin to shut down the module in case of an overvoltage or undervoltage condition.
The recommended input voltage range for the DH06S4805A is 36V to 72V, with a maximum input voltage of 80V. Operating the module outside of this range may affect its performance, reliability, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DH06S4805A Overview

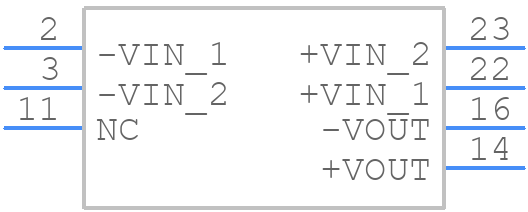

Use the download button to access the DH06S4805A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DH06S,
or try a keyword search, such as Power Supply Modules
