DH45W10-800S12P - Cincon

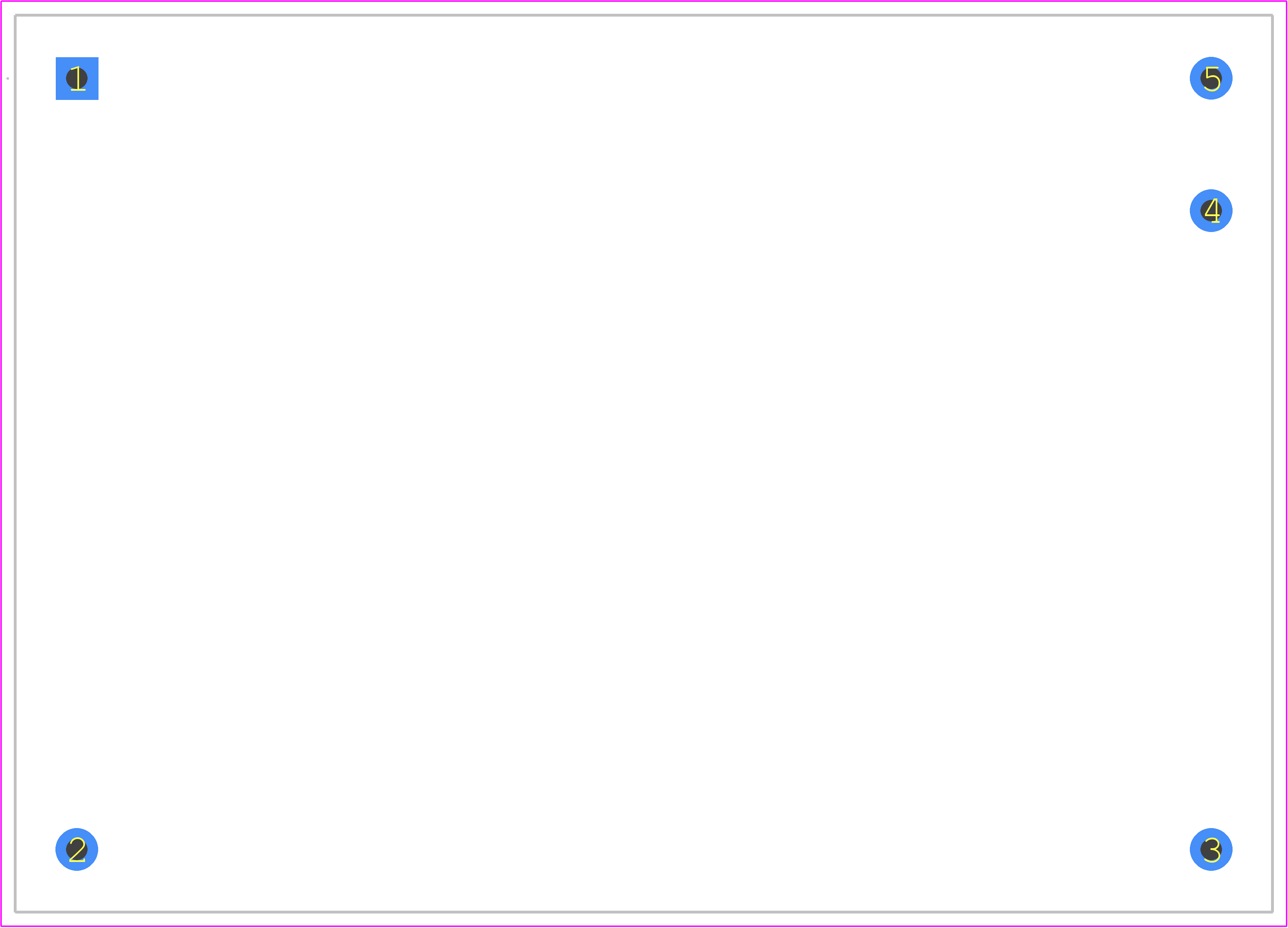

DH45W10-800S12P Details

• Manufacturer Part Number:

  DH45W10-800S12P

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-6

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  9

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, CSA, EN, UKCA, UL

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  1500 V

• Input Voltage-Min:

  150 V

• Input Voltage-Nom:

  800 V

• JESD-30 Code:

  R-PDMA-P5

• Length:

  89 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  5

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3.75 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,5LEAD,3.1

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT, OVER VOLTAGE, OVER TEMPERATURE, SHORT CIRCUIT, UNDER VOL

• Ripple Voltage (Main Out):

  0.042 Vrms

• Seated Height-Max:

  25.5 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Finish:

  Matte Tin (Sn) - with Nickel (Ni) barrier

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  45 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.458 s

• Width:

  63.5 mm
