Part Image

DH60A-27P - Hirose

Description: Hirose DH Series 24.2mm 27 Way 2 Row Right Angle PCB Socket Surface Mount Wire to Board

Download DH60A-27P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

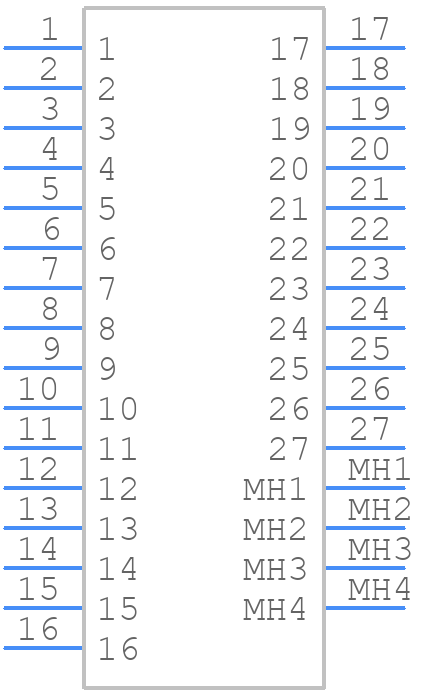

DH60A-27P - Hirose - PCB symbol
click to zoom
PCB Footprints

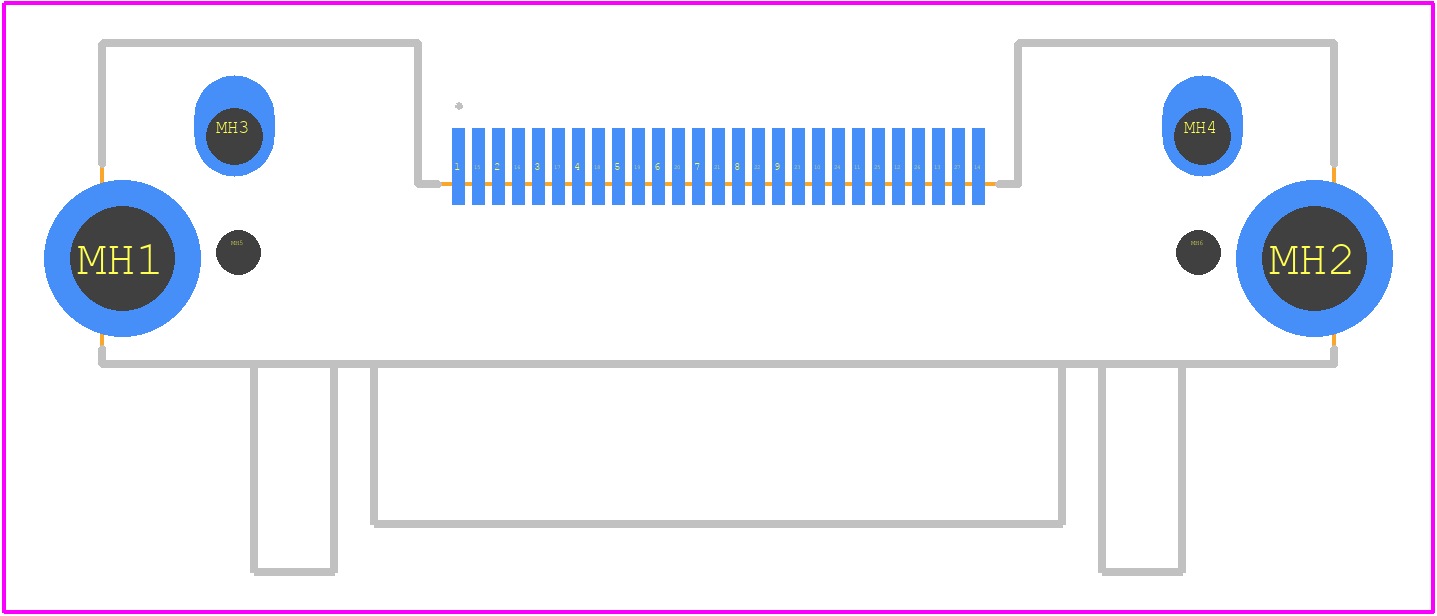

DH60A-27P - Hirose PCB footprint - Other - Other - DH60A-27P-2
click to zoom
3D Models
DH60A-27P - Hirose - 3D model - Other - DH60A-27P-2
click to zoom

DH60A-27P Details

  • Manufacturer Part Number:

    DH60A-27P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

DH60A-27P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure secure connection and prevent damage to the connector.
  • Yes, the DH60A-27P is designed to withstand vibrations. However, it's crucial to ensure proper mounting and screw locking to maintain the connection's integrity.
  • The DH60A-27P can operate in temperatures ranging from -40°C to 105°C. However, it's essential to consider the temperature rating of the cables and wires used in conjunction with the connector.
  • Yes, the DH60A-27P is designed for automated assembly and can be easily integrated into high-volume production lines.
  • The recommended wire size for the DH60A-27P is AWG 24 to AWG 30. Using wires within this range ensures reliable connections and minimizes the risk of damage to the connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DH60A-27P Overview

Use the download button to access the DH60A-27P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DH60A, or try a keyword search, such as Telecom and Datacom Connectors
