DHA-06TQ - Diptronics

Description: DIP Switches / SIP Switches Half Pitch Dip switch 2.2mm height

Download DHA-06TQ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DHA-06TQ model

Email notifications will be applied after download.

Send part feedback

Symbol

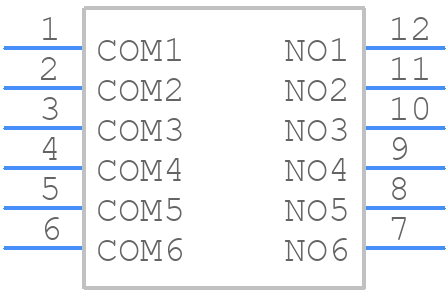

DHA-06TQ - Diptronics - PCB symbol

PCB Footprints

DHA-06TQ - Diptronics PCB footprint - Other - Other - DHA-06TQ-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for DHA-06TQ
Part Number DHA-06TQ
Manufacturer Diptronics
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - DHA-06TQ-2
Released Date May 31, 2025
Last Modified Date Jun 3, 2025 9:29 AM UTC
Pinout / Pin List Click Here (Member Only)

DHA-06TQ Details

Manufacturer Part Number:
DHA-06TQ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Diptronics Manufacturing Inc
JESD-609 Code:
e4
Switch Type:
SLIDE DIP SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Community Provided

System Verified

Community Approved

DHA-06TQ Overview

Use the download button to access the DHA-06TQ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DHA-0, or try a keyword search, such as DIP Switches
