The recommended PCB layout involves placing the DHA-08TQR near a thermal pad or heat sink to dissipate heat efficiently. A minimum of 2oz copper thickness and a 2-layer PCB with a solid ground plane is recommended. Additionally, a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K is suggested.
To ensure reliable operation across the full temperature range, it is essential to follow the recommended operating conditions, including voltage, current, and power dissipation. Additionally, the device should be stored and operated in a dry, clean environment, away from moisture and contaminants.
The DHA-08TQR has built-in ESD protection, but it is still essential to follow proper handling and storage procedures to prevent damage. This includes using anti-static wrist straps, mats, and bags, and avoiding direct contact with the device pins.
The DHA-08TQR is designed for high-reliability applications, but it is essential to follow the recommended design and testing procedures to ensure compliance with safety standards. Additionally, a thorough failure modes and effects analysis (FMEA) and fault tree analysis (FTA) should be performed to identify and mitigate potential risks.
The recommended soldering procedure involves using a soldering iron with a temperature of 250°C to 260°C, and a solder with a melting point of 180°C to 190°C. The device should be handled by the package, not the pins, and the soldering time should be minimized to prevent thermal damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DHA-08TQR Overview

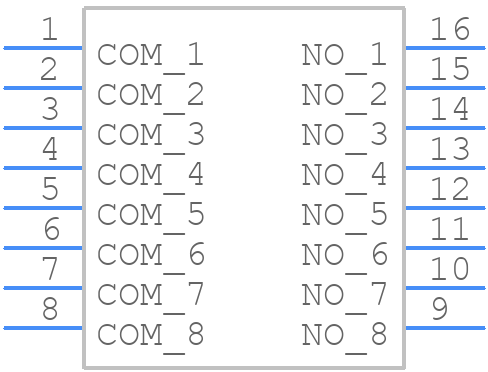

Use the download button to access the DHA-08TQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DHA-0,
or try a keyword search, such as DIP Switches
