DHH55-36N1F - LITTELFUSE

Description: Diodes - General Purpose, Power, Switching 55 Amps 3600V

Download DHH55-36N1F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

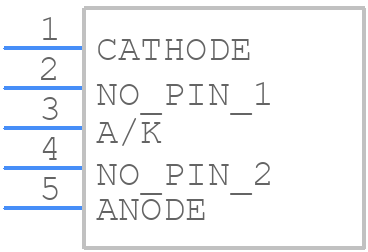

DHH55-36N1F - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
DHH55-36N1F - LITTELFUSE PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - i4-Pac™-3
click to zoom
3D Models
DHH55-36N1F - LITTELFUSE - 3D model - Transistor Outline, Vertical - i4-Pac™-3
click to zoom

DHH55-36N1F Details

  • Manufacturer Part Number:

    DHH55-36N1F

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    5.98

  • Additional Feature:

    FREE WHEELING DIODE, HIGH RELIABILITY, LOW NOISE

  • Application:

    SOFT RECOVERY

  • Configuration:

    SERIES CONNECTED, CENTER TAP, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e1

  • Non-rep Pk Forward Current-Max:

    650 A

  • Number of Elements:

    2

  • Number of Phases:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    47 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    1800 V

  • Reverse Recovery Time-Max:

    0.35 µs

  • Surface Mount:

    NO

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

DHH55-36N1F Frequently Asked Questions (FAQs)

  • The recommended mounting torque for the DHH55-36N1F is 10-15 in-lbs (1.1-1.7 Nm) to ensure proper connection and prevent damage to the fuse.
  • Yes, the DHH55-36N1F is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting to prevent damage or dislodging of the fuse.
  • The maximum operating temperature range for the DHH55-36N1F is -40°C to 125°C. However, it's recommended to derate the fuse's current rating at higher temperatures to ensure reliable operation.
  • The DHH55-36N1F is designed to meet the requirements of IEC 60269-1 and UL 248-14, which includes testing for humidity and moisture. However, it's recommended to follow the manufacturer's guidelines for environmental testing and ensure proper sealing and protection to prevent moisture ingress.
  • The recommended wire size and type for connecting to the DHH55-36N1F is 14 AWG to 22 AWG, with a maximum wire length of 12 inches (305 mm). It's recommended to use a wire with a temperature rating of at least 150°C to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DHH55-36N1F Overview

Use the download button to access the DHH55-36N1F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DHH55, or try a keyword search, such as Rectifier Diodes
