DHL-5R5D105T - Elna

Description: Supercapacitors / Ultracapacitors 1.0F 5.5V -20+80% 21.5 x 9.5mm

Download DHL-5R5D105T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DHL-5R5D105T - Elna - PCB symbol
click to zoom
PCB Footprints

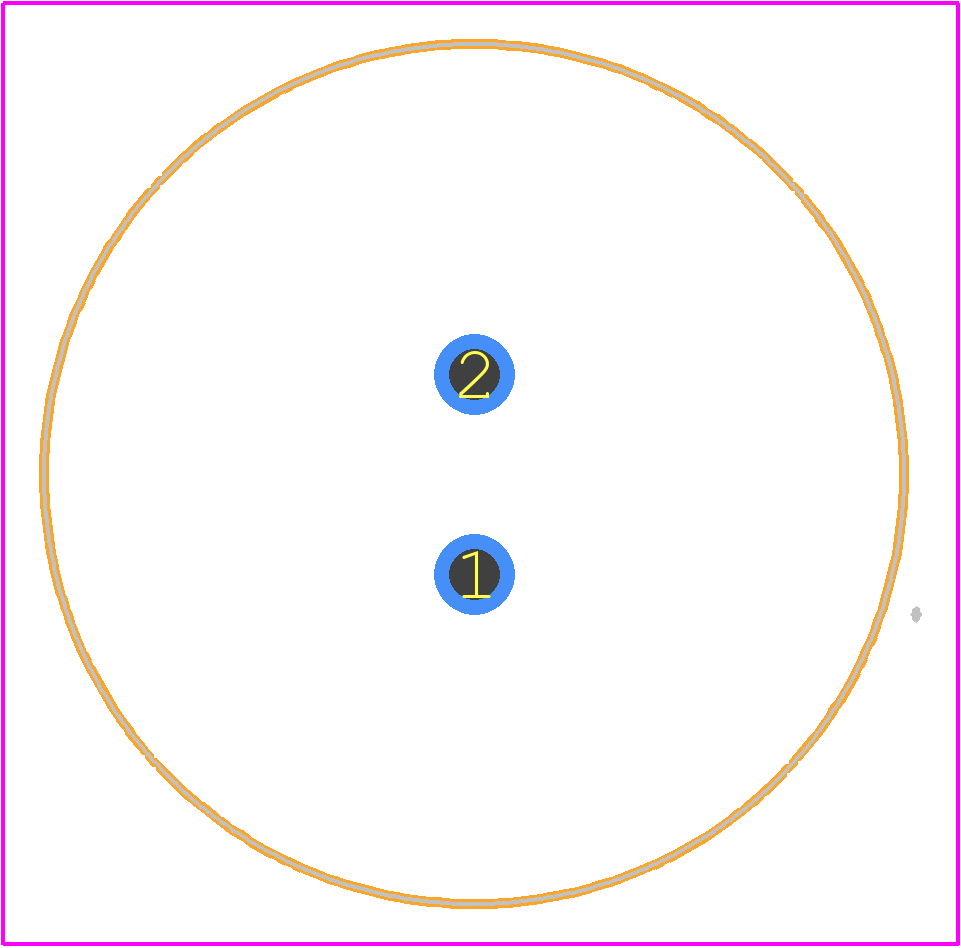

DHL-5R5D105T - Elna PCB footprint - Other - Other - DHL-5R5D105T-1
click to zoom
3D Models
DHL-5R5D105T - Elna - 3D model - Other - DHL-5R5D105T-1
click to zoom

DHL-5R5D105T Details

  • Manufacturer Part Number:

    DHL-5R5D105T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    GREEN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitance:

    1 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

DHL-5R5D105T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DHL-5R5D105T is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the DHL-5R5D105T capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of the DHL-5R5D105T is approximately 0.015 ohms at 100 kHz.
  • Yes, the DHL-5R5D105T is suitable for high-frequency applications up to 1 GHz due to its low equivalent series inductance (ESL) and high self-resonant frequency.
  • The MSL of the DHL-5R5D105T is level 3, which means it can withstand exposure to moisture for up to 168 hours without requiring baking before reflow soldering.
