The recommended operating temperature range for the DHN-04-V-T/R is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point compatible with the device's lead finish, and avoid applying excessive heat or mechanical stress during the soldering process.
The maximum allowable voltage for the DHN-04-V-T/R is 100V, as specified in the datasheet. Exceeding this voltage may cause permanent damage to the device or affect its reliability.
The DHN-04-V-T/R is designed for general-purpose use and may not be suitable for high-frequency applications. If you need to use it in a high-frequency application, consult with Diptronics Manufacturing Inc or a qualified engineer to determine its feasibility and potential limitations.
To prevent electrostatic discharge (ESD) damage, handle the DHN-04-V-T/R with ESD-protective equipment, such as wrist straps, mats, or bags. Ensure that your workspace and tools are ESD-safe, and follow proper handling and storage procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DHN-04-V-T/R Overview

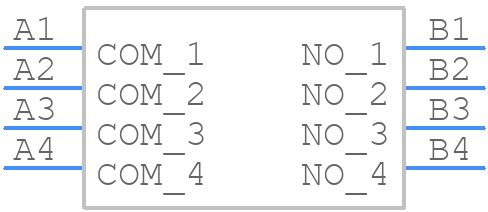

Use the download button to access the DHN-04-V-T/R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DHN-0,
or try a keyword search, such as DIP Switches
