DHN-06-V-T/R footprint, schematic symbol and 3D model by Diptronics

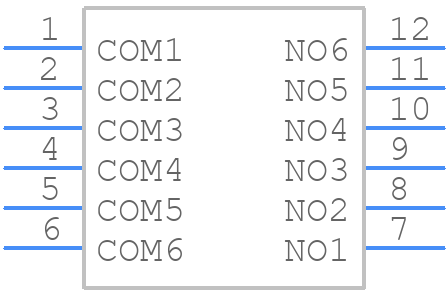

Symbol

PCB Footprints

3D Models

DHN-06-V-T/R Details

The recommended storage temperature for DHN-06-V-T/R is -40°C to 100°C, as specified by the manufacturer.
Yes, the DHN-06-V-T/R is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
The typical lead time for DHN-06-V-T/R is 4-6 weeks, depending on the quantity and availability. It's recommended to check with the manufacturer or authorized distributors for the most up-to-date lead time information.
Yes, the DHN-06-V-T/R is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
The maximum operating altitude for DHN-06-V-T/R is 70,000 feet (21,336 meters), making it suitable for high-altitude applications.

Expert Contribution

System Verified

Community Approved

Use the download button to access the DHN-06-V-T/R schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DHN-0, or try a keyword search, such as DIP Switches
