The recommended operating temperature range for the DI1010S_R2_00001 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper power supply, connect the VCC pin to a stable 3.3V or 5V power source, and the GND pin to a solid ground. Additionally, it's crucial to follow the recommended power-up sequence and decoupling capacitor values specified in the datasheet to prevent voltage spikes and noise.
The DI1010S_R2_00001 supports a maximum data transfer rate of 100 Mbps, as specified in the datasheet. However, the actual data transfer rate may vary depending on the system design, clock frequency, and signal quality.
To prevent signal degradation, it's recommended to use a suitable output buffer or line driver to maintain signal integrity, especially when driving long cables or high-capacitance loads. Additionally, ensure that the output signals are properly terminated and matched to the transmission line impedance.
To ensure optimal performance and minimize electromagnetic interference (EMI), follow the recommended PCB layout guidelines in the datasheet, including keeping the signal traces short, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DI1010S_R2_00001 Overview

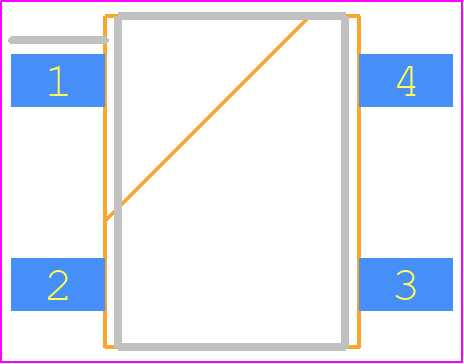

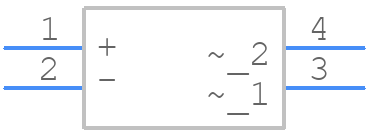

Use the download button to access the DI1010S_R2_00001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DI101,
or try a keyword search, such as Bridge Rectifier Diodes
