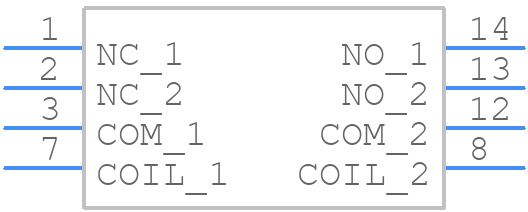

DIL05-2C90-63L footprint, schematic symbol and 3D model by STANDEXMEDER

Symbol

PCB Footprints

3D Models

DIL05-2C90-63L Details

The recommended PCB layout and land pattern can be found in the Standex-Meder Electronics application note AN-105, which provides guidelines for proper PCB design and assembly.
To ensure reliable switching performance in high-vibration or high-shock environments, it is recommended to use a relay socket or a relay with a ruggedized design, such as the DIL05-2C90-63L, which is designed to withstand vibrations up to 10g and shocks up to 50g.
The maximum switching frequency for the DIL05-2C90-63L is 20 Hz, but it's recommended to consult with the manufacturer or a qualified engineer to determine the suitable switching frequency for a specific application.
The DIL05-2C90-63L is rated for operation up to 85°C, but it's recommended to derate the relay's performance at higher temperatures. Consult with the manufacturer or a qualified engineer to determine the suitable operating temperature range for a specific application.
The recommended cleaning and storage procedure for the DIL05-2C90-63L can be found in the Standex-Meder Electronics application note AN-103, which provides guidelines for proper handling, storage, and cleaning of relays.

Expert Contribution

System Verified

Community Approved

Use the download button to access the DIL05-2C90-63L schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DIL05, or try a keyword search, such as Reed Relays
