The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the DIN-096CPC-SR1-TR is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The DIN-096CPC-SR1-TR has a IP20 rating, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's not recommended for direct exposure to harsh environmental conditions, such as high temperatures, humidity, or chemical exposure.
While the datasheet specifies AWG 24-20 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to ensure the wire size is compatible with the terminal's current rating and that the wire is properly secured to prevent damage or disconnection.
The operating temperature range for the DIN-096CPC-SR1-TR is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DIN-096CPC-SR1-TR Overview

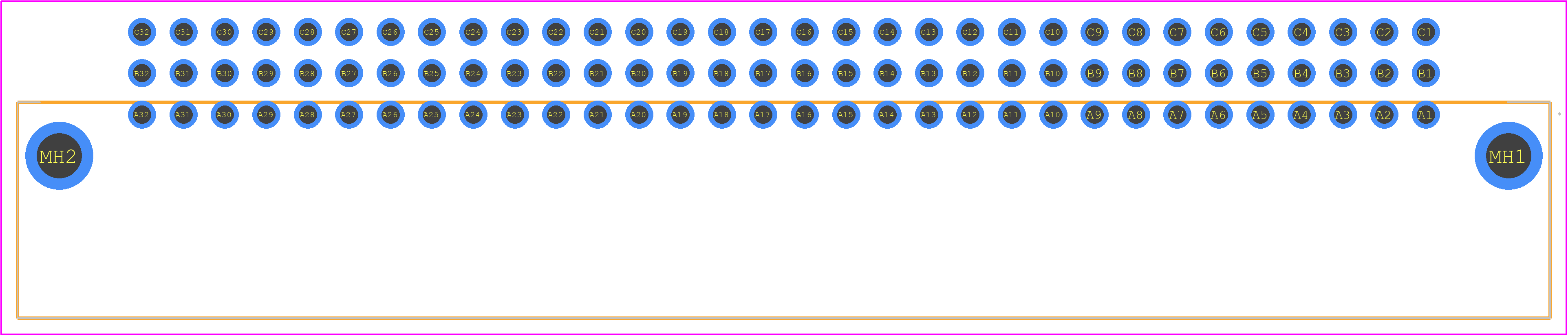

Use the download button to access the DIN-096CPC-SR1-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIN-0,
or try a keyword search, such as Headers and Edge Type Connectors
Suggested Parts
If you searched for DIN-096CPC-SR1-TR, you might also be interested in these parts:
