The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a heat sink or a thermal plane on the PCB.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage, current, and temperature. Additionally, consider using thermal protection, such as a thermistor or thermal fuse, to prevent overheating.
The device has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging.
While the DIO1269LP10 is a high-performance device, it's essential to evaluate its suitability for high-reliability or automotive applications by reviewing the device's AEC-Q100 qualification, PPAP documentation, and performing thorough testing and validation.
To troubleshoot common issues, start by verifying the PCB layout, component selection, and soldering quality. Check the input voltage, output load, and decoupling capacitors. Use oscilloscopes or signal analyzers to identify oscillations or voltage deviations, and consult the datasheet or application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DIO1269LP10 Overview

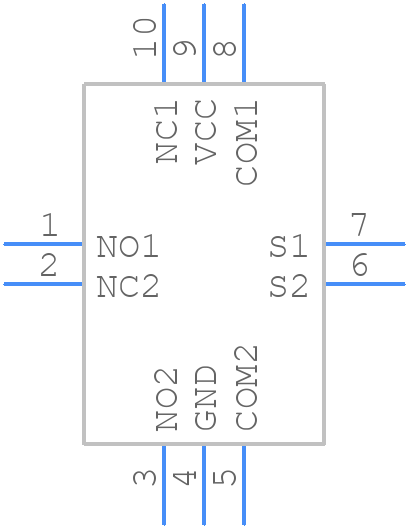

Use the download button to access the DIO1269LP10 schematic symbol, PCB footprint, and 3D model.
