DIO1500WL12 - DIOO Microcircuits

Description: Analog Switch ICs Depletion mode isolation switch

Download DIO1500WL12 Model

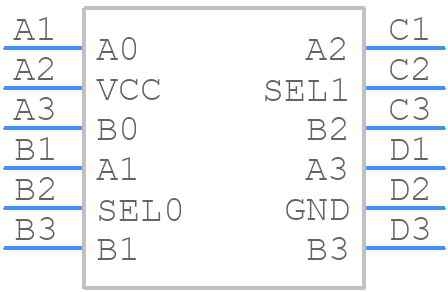

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DIO1500WL12 - DIOO Microcircuits PCB footprint - BGA - BGA - WLCSP-12
click to zoom
3D Models
DIO1500WL12 - DIOO Microcircuits  - 3D model - BGA - WLCSP-12
click to zoom

DIO1500WL12 Details

  • Manufacturer Part Number:

    DIO1500WL12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-12

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Dioo Microcircuits Co Ltd

  • Analog IC - Other Type:

    4PST

  • JESD-30 Code:

    R-XBGA-B12

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    90 dB

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Signal Current-Max:

    0.35 A

  • Supply Voltage-Max (Vsup):

    3 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

DIO1500WL12 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal management guidelines, use a heat sink or thermal pad, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
  • The DIO1500WL12 has built-in ESD protection diodes, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, it's essential to follow the recommended operating conditions, avoid overvoltage and overcurrent conditions, and use a latch-up immune design approach.
  • While the DIO1500WL12 is suitable for high-frequency switching applications, it's essential to consider the device's switching characteristics, such as rise and fall times, and ensure that the application's switching frequency is within the device's recommended operating range.
  • To troubleshoot common issues, start by verifying the PCB layout and thermal management, checking for proper input and output connections, and ensuring that the device is operated within the recommended specifications. Use oscilloscopes and multimeters to measure voltage, current, and temperature, and consult the datasheet and application notes for guidance.
