DIO1567CL16 - DIOO Microcircuits

Description: Analog Switches QFN-16 RoHS

Download DIO1567CL16 Model

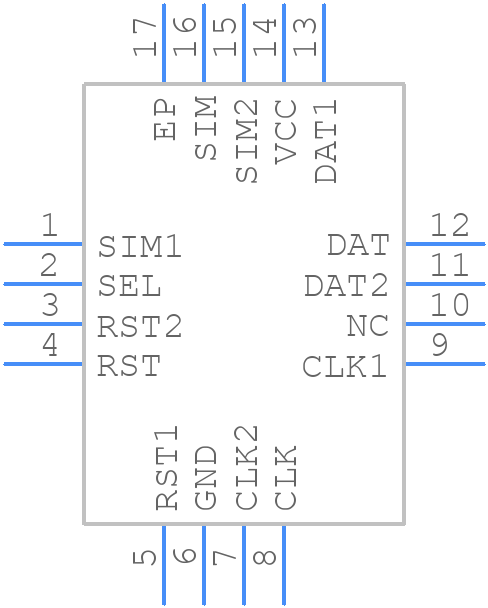

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DIO1567CL16 - DIOO Microcircuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN-16
click to zoom
3D Models
DIO1567CL16 - DIOO Microcircuits  - 3D model - Quad Flat No-Lead - TQFN-16
click to zoom

DIO1567CL16 Details

  • Manufacturer Part Number:

    DIO1567CL16

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    TQFN-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Dioo Microcircuits Co Ltd

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-XQCC-N16

  • Normal Position:

    NO

  • Number of Channels:

    4

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    52 dB

  • On-state Resistance Match-Nom:

    0.2 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Signal Current-Max:

    0.15 A

  • Supply Voltage-Max (Vsup):

    4.3 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

DIO1567CL16 Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
  • To ensure reliable operation, follow the recommended operating conditions, use a suitable thermal design, and consider the device's thermal derating. Additionally, ensure that the input and output voltage levels are within the specified ranges, and the device is not exposed to excessive moisture or humidity.
  • The DIO1567CL16 has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is not exposed to excessive voltage or current, and follow the recommended operating conditions.
  • While the DIO1567CL16 is a reliable device, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Consider factors such as the device's failure rate, operating conditions, and any necessary certifications or compliance with industry standards.
  • The recommended testing and validation procedures include functional testing, parametric testing, and environmental testing. Ensure that the testing is done according to the device's specifications and industry standards, and that the device is properly calibrated and configured.
