DIP05-1A75-12L - Meder

Description: Reed Relays, 5 VDC, 1 Form A (SPST-NO), 500 mA, 200 Ohms, 500 VDC

Download DIP05-1A75-12L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DIP05-1A75-12L model

Email notifications will be applied after download.

Send part feedback

Symbol

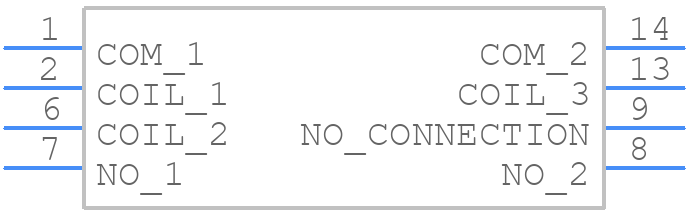

DIP05-1A75-12L - Meder - PCB symbol

PCB Footprints

DIP05-1A75-12L - Meder PCB footprint - Other - Other - DIP05-1A75-12L-3

3D Models

DIP05-1A75-12L - Meder - 3D model - Other - DIP05-1A75-12L-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for DIP05-1A75-12L
Part Number DIP05-1A75-12L
Manufacturer Meder
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DIP05-1A75-12L-3
Released Date Aug 3, 2021
Last Modified Date Nov 29, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

DIP05-1A75-12L Details

Manufacturer Part Number:
DIP05-1A75-12L
Part Life Cycle Code:
Active
Country Of Origin:
Germany
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Standex-Meder Electronics
YTEOL:
9
Relay Type:
DRY REED RELAY
