DIP05-1C90-51D footprint, schematic symbol and 3D model by STANDEXMEDER

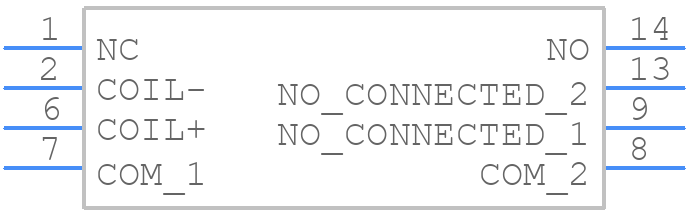

Symbol

PCB Footprints

3D Models

DIP05-1C90-51D Details

The recommended operating temperature range for the DIP05-1C90-51D is -40°C to 125°C.
The maximum switching voltage for the DIP05-1C90-51D is 1000V, and the maximum switching current is 0.5A.
The coil resistance of the DIP05-1C90-51D is approximately 100 ohms.
The minimum operating frequency for the DIP05-1C90-51D is DC, and the maximum operating frequency is 100 Hz.
Yes, the DIP05-1C90-51D is suitable for high-reliability applications, including aerospace, defense, and medical devices.

Community Provided

System Verified

Community Approved

Use the download button to access the DIP05-1C90-51D schematic symbol, PCB footprint, and 3D model.
