DIP05-1C90-51E footprint, schematic symbol and 3D model by STANDEXMEDER

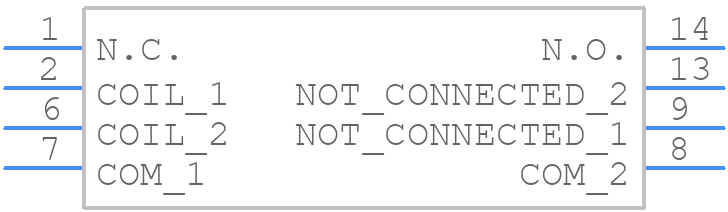

Symbol

PCB Footprints

3D Models

DIP05-1C90-51E Details

The recommended PCB layout and land pattern can be found in the Standex-Meder Electronics' application note AN-105, which provides guidelines for proper PCB design and assembly.
To ensure reliable switching performance and long-term reliability, follow proper handling and storage procedures, avoid excessive mechanical stress, and operate the relay within its specified ratings and environmental conditions.
While the DIP05-1C90-51E is designed to be rugged, it's essential to evaluate the relay's performance in your specific application. Consult with Standex-Meder Electronics' technical support or perform environmental testing to ensure the relay meets your requirements.
The recommended soldering profile is a peak temperature of 260°C (500°F) for 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s). Consult the datasheet or application note AN-105 for more details.
Yes, the DIP05-1C90-51E is sensitive to electrostatic discharge (ESD). Follow proper ESD handling and protection procedures, such as using an ESD wrist strap, mat, or workstation, to prevent damage to the relay.
