The recommended PCB layout and land pattern can be found in the manufacturer's application note or by contacting their technical support team. A general guideline is to follow the IPC-7251 standard for through-hole components.
To ensure reliable switching and minimize contact bounce, use a debouncing circuit or a capacitor in parallel with the relay coil to reduce electromagnetic interference (EMI). Also, ensure proper PCB layout and routing to minimize noise and interference.
The maximum switching frequency of the DIP12-1A72-12L is not explicitly stated in the datasheet. However, as a general guideline, it is recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and minimize wear on the relay contacts.
The DIP12-1A72-12L is rated for operation up to 85°C. However, it's essential to consider the derating curves and thermal management in high-temperature environments to ensure reliable operation and prevent overheating.
To prevent electrostatic discharge (ESD) damage, handle the DIP12-1A72-12L in an ESD-protected environment, wear an ESD wrist strap, and use ESD-safe packaging and materials.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DIP12-1A72-12L Overview

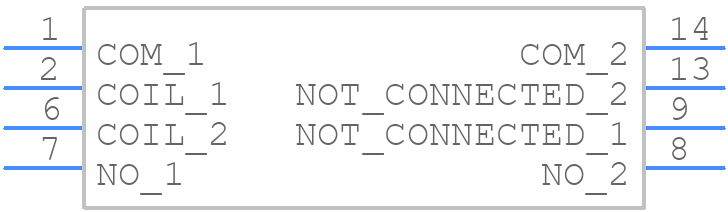

Use the download button to access the DIP12-1A72-12L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIP12,
or try a keyword search, such as Reed Relays
