DIP12-1C90-51D footprint, schematic symbol and 3D model by STANDEXMEDER

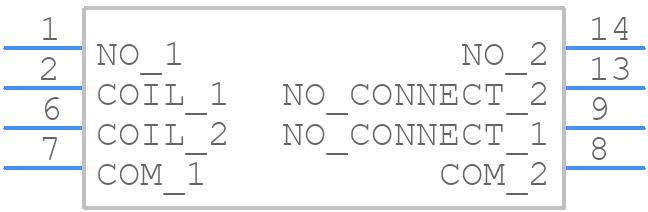

Symbol

PCB Footprints

3D Models

DIP12-1C90-51D Details

The recommended soldering temperature for the DIP12-1C90-51D is between 250°C to 260°C for a maximum of 5 seconds.
Yes, the DIP12-1C90-51D is compatible with lead-free soldering processes.
The maximum operating frequency of the DIP12-1C90-51D is 100 MHz.
Yes, the DIP12-1C90-51D is designed for high-reliability applications and meets the requirements of MIL-PRF-39007.
The storage temperature range for the DIP12-1C90-51D is -55°C to 125°C.

Community Provided

System Verified

Community Approved

Use the download button to access the DIP12-1C90-51D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DIP12, or try a keyword search, such as Reed Relays
