- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DIP15-1B72-19L
- Part Number DIP15-1B72-19L
- Manufacturer Meder
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Other
- Footprint Name Other - DIP05-1C90-51L-1
- Released Date Aug 11, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DIP15-1B72-19L Details
-
Manufacturer Part Number:
DIP15-1B72-19L
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany
-
ECCN Code:
EAR99
-
HTS Code:
8536.49.00.50
-
Manufacturer:
Standex-Meder Electronics
-
YTEOL:
9.2
-
Relay Type:
DRY REED RELAY
Trust Checks
Expert Contribution
System Verified
Community Approved
DIP15-1B72-19L Overview

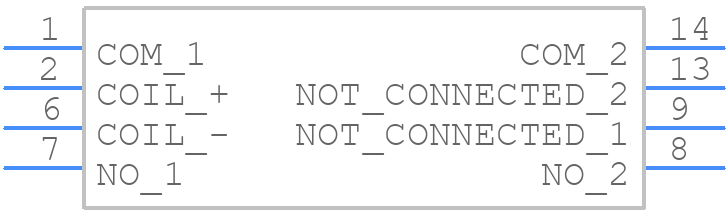

Use the download button to access the DIP15-1B72-19L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIP15,
or try a keyword search, such as Reed Relays
