The maximum switching frequency of the DIP24-1A72-12L is 20 Hz. However, it's recommended to consult with the manufacturer for specific application requirements.
The DIP24-1A72-12L is rated for operation up to 85°C. However, derating may be necessary for temperatures above 70°C. Consult the manufacturer for specific guidance.
The recommended coil resistance for the DIP24-1A72-12L is 1000 Ω ± 10% at 20°C.
The DIP24-1A72-12L is designed to withstand moderate vibration. However, it's recommended to consult with the manufacturer for specific vibration requirements and potential derating.
The minimum pulse width required to activate the DIP24-1A72-12L is 1 ms. However, it's recommended to consult with the manufacturer for specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DIP24-1A72-12L Overview

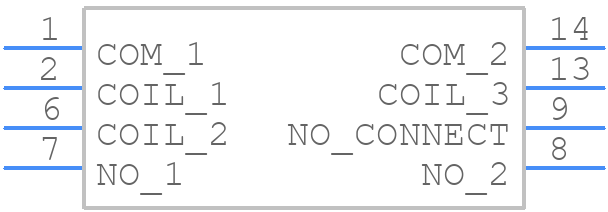

Use the download button to access the DIP24-1A72-12L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIP24,
or try a keyword search, such as Reed Relays
