DIP24-1B72-19L - Meder

Description: Relay: reed; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; max.200VAC; PCB

Download DIP24-1B72-19L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this DIP24-1B72-19L model

Email notifications will be applied after download.

Send part feedback

Symbol

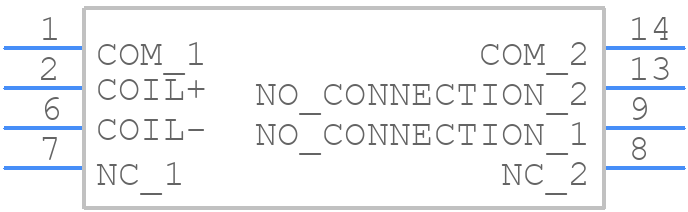

DIP24-1B72-19L - Meder - PCB symbol

PCB Footprints

DIP24-1B72-19L - Meder PCB footprint - Other - Other - DIP24-1B72-19L-1

3D Models

DIP24-1B72-19L - Meder - 3D model - Other - DIP24-1B72-19L-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for DIP24-1B72-19L
Part Number DIP24-1B72-19L
Manufacturer Meder
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - DIP24-1B72-19L-1
Released Date Aug 29, 2023
Last Modified Date Aug 29, 2023 4:09 AM UTC
Pinout / Pin List Click Here (Member Only)

DIP24-1B72-19L Details

Manufacturer Part Number:
DIP24-1B72-19L
Part Life Cycle Code:
Active
Country Of Origin:
Germany
ECCN Code:
EAR99
HTS Code:
8536.49.00.50
Manufacturer:
Standex-Meder Electronics
YTEOL:
7.95
Relay Type:
DRY REED RELAY
