DIP24-1C90-51D footprint, schematic symbol and 3D model by STANDEXMEDER

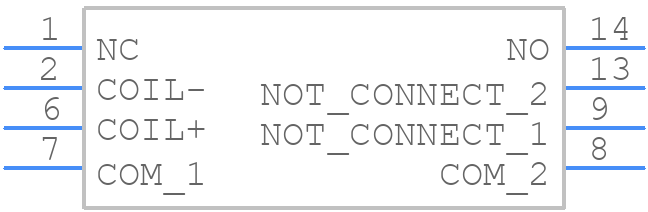

Symbol

PCB Footprints

3D Models

DIP24-1C90-51D Details

The maximum switching frequency of the DIP24-1C90-51D is 20 Hz. Exceeding this frequency may lead to reduced relay life.
The DIP24-1C90-51D is rated for operation up to 85°C. Exceeding this temperature may affect relay performance and lifespan.
To ensure proper relay operation, the coil voltage should be within the specified range (5V to 24V), and the coil current should not exceed 150 mA. A diode or snubber circuit may be required to suppress back-EMF.
The DIP24-1C90-51D can switch loads as low as 10 μA. However, it's recommended to use a minimum load of 1 mA to ensure reliable switching.
The DIP24-1C90-51D has a maximum switching voltage of 250 VAC/DC. Exceeding this voltage may lead to relay failure or reduced lifespan.

Community Provided

System Verified

Community Approved

Use the download button to access the DIP24-1C90-51D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DIP24, or try a keyword search, such as Reed Relays
