DJ06S2424A - Delta Electronics

Description: Isolated Module DC DC Converter 1 Output 24V 250mA 9V - 36V Input

Download DJ06S2424A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

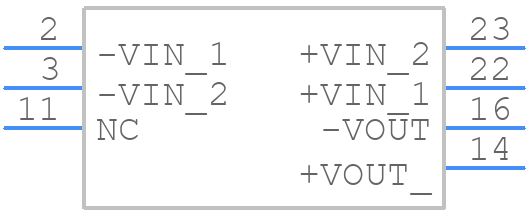

DJ06S2424A - Delta Electronics - PCB symbol
click to zoom
PCB Footprints
DJ06S2424A - Delta Electronics PCB footprint - Other - Other - DJ06S2424A-1
click to zoom
3D Models
DJ06S2424A - Delta Electronics - 3D model - Other - DJ06S2424A-1
click to zoom

DJ06S2424A Details

  • Manufacturer Part Number:

    DJ06S2424A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-P8

  • Length:

    31.8 mm

  • Load Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    24.48 V

  • Output Voltage-Min:

    23.52 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

DJ06S2424A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The thermal pad should be connected to the ground plane through multiple thermal vias to ensure efficient heat dissipation.
  • Ensure that the input voltage is within the specified range, and the output voltage is not pre-biased. Also, add a soft-start circuit to limit the inrush current and prevent voltage overshoot.
  • The maximum allowed capacitance for the output filter is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value is 10uH, and it's designed to work optimally with the DJ06S2424A.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the output voltage is within the specified range, and the output capacitor is of the correct value and type. Also, check for any signs of overheating or component failure.
