DJ06S4805A - Delta Electronics

Description: Isolated DC/DC Converters DC/DC Converter, 5Vout, 6W

Download DJ06S4805A Model

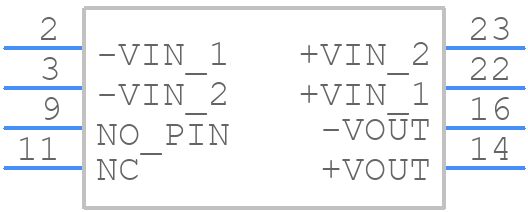

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DJ06S4805A - Delta Electronics PCB footprint - Other - Other - DJ06S4805A-2
click to zoom
3D Models
DJ06S4805A - Delta Electronics  - 3D model - Other - DJ06S4805A-2
click to zoom

DJ06S4805A Details

  • Manufacturer Part Number:

    DJ06S4805A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Delta Electronics Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-PDMA-P8

  • Length:

    31.8 mm

  • Load Regulation-Max:

    1.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.45 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm
