Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper mounting, thermal management, and electrical performance.
Proper thermal management is crucial for the DK1A1B-L2-3V. Ensure good thermal conductivity by using a thermal pad or thermal interface material between the device and the PCB. Also, consider using a heat sink or a thermal management system to keep the device within its operating temperature range.
While the datasheet specifies the maximum rated voltage, it's essential to derate the voltage to ensure long-term reliability. A common derating practice is to reduce the voltage by 10-20% to account for voltage spikes, noise, and other environmental factors.
The DK1A1B-L2-3V is designed for low-frequency applications. While it may work in high-frequency applications, it's essential to evaluate the device's performance and ensure it meets the required specifications. Panasonic may provide additional guidance or recommendations for high-frequency use.
To troubleshoot issues with the DK1A1B-L2-3V, follow a systematic approach: 1) Verify the device is properly mounted and soldered, 2) Check the PCB layout and design, 3) Ensure proper power supply and voltage regulation, 4) Use oscilloscopes or logic analyzers to debug the circuit, and 5) Consult Panasonic's application notes and technical support resources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DK1a1b-L2-3V Overview

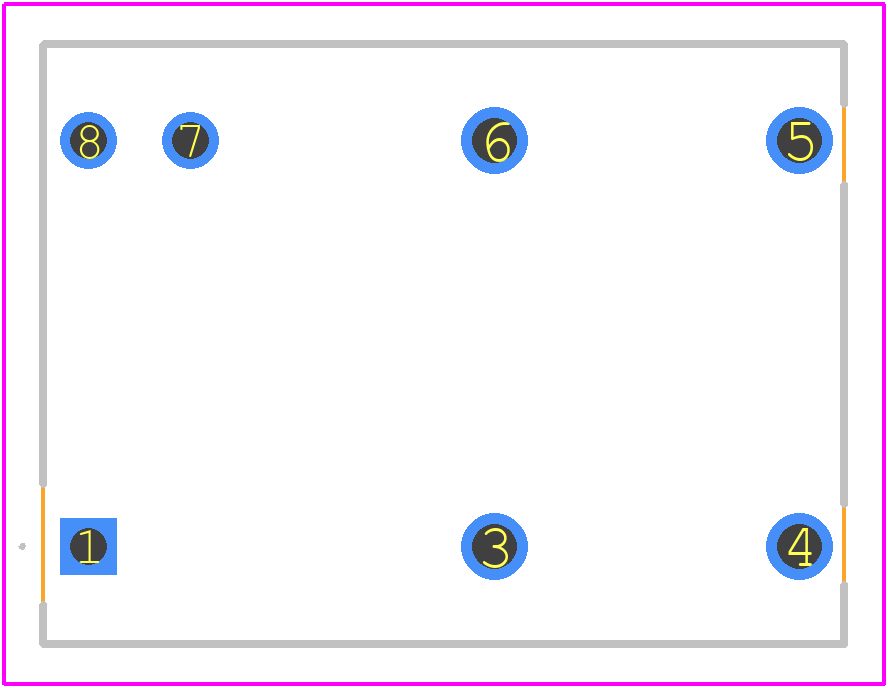

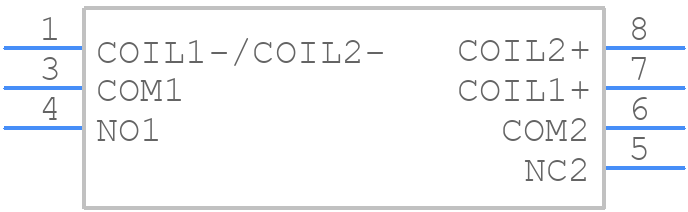

Use the download button to access the DK1a1b-L2-3V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DK1a1,
or try a keyword search, such as Power/Signal Relays
