Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce noise, and prevent electrical shorts.
The DK1A1B-L2-9V has a high power density, so proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The derating curve is typically provided in the datasheet or application notes. It shows how the maximum current rating decreases as the ambient temperature increases. Engineers should consider this derating curve when designing their application to ensure the device operates within its safe operating area.
While the DK1A1B-L2-9V is a robust device, it's essential to evaluate its suitability for high-vibration or high-shock environments. Panasonic may provide additional information or guidelines for such applications. Engineers should consider the device's mechanical characteristics, such as its weight, size, and mounting method, to ensure reliable operation.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider the device's electromagnetic emissions and susceptibility to external interference, and take necessary measures to mitigate any potential issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DK1a1b-L2-9V Overview

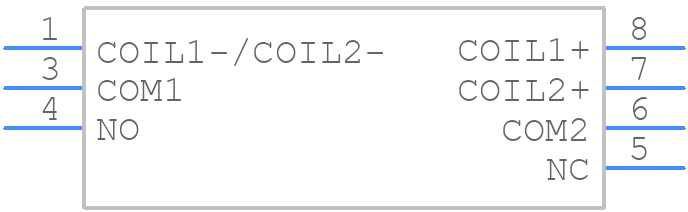

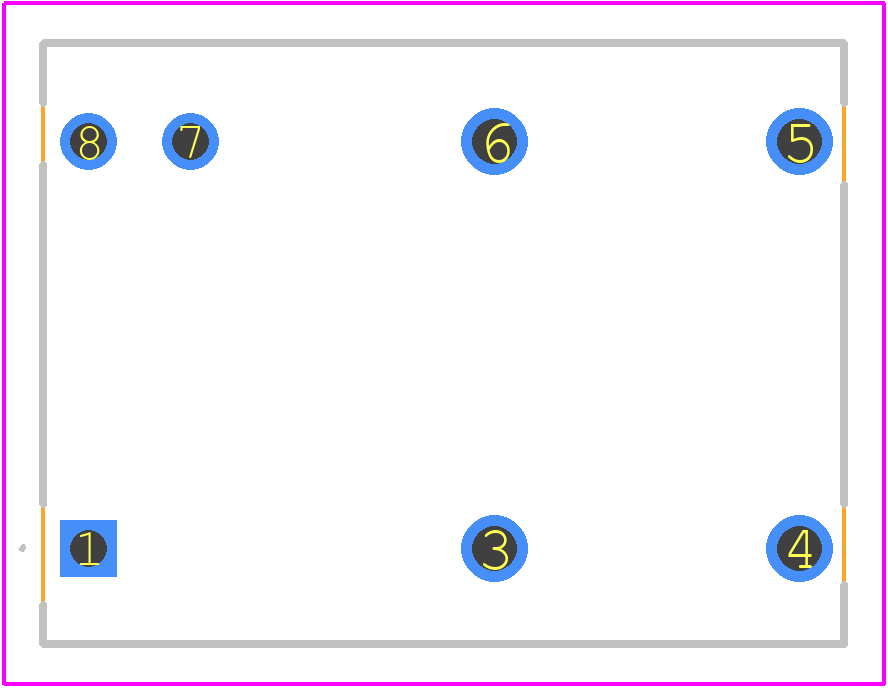

Use the download button to access the DK1a1b-L2-9V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DK1a1,
or try a keyword search, such as Power/Signal Relays
