DKIH-3237-1010-NK footprint, schematic symbol and 3D model by SCHURTER

Symbol

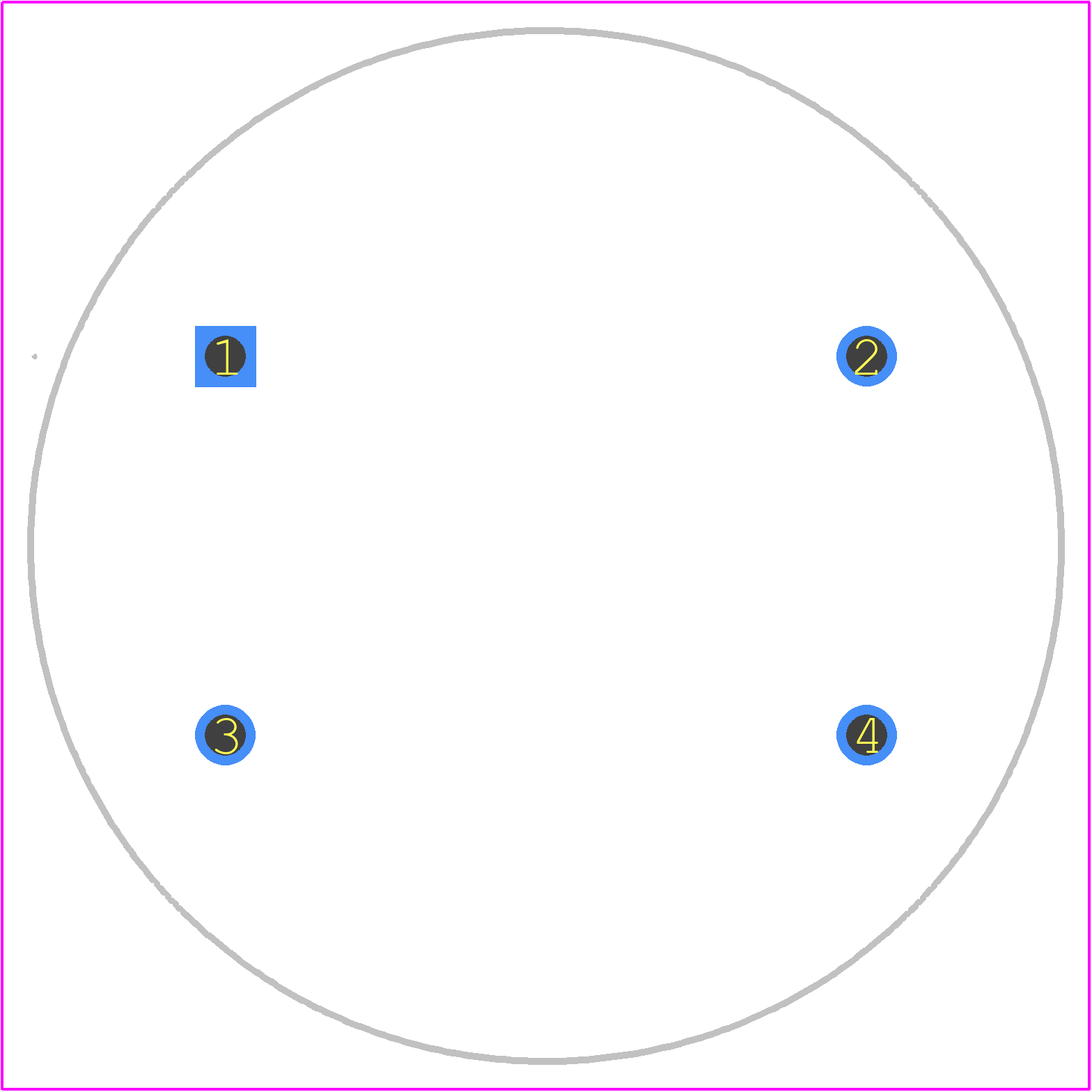

PCB Footprints

3D Models

DKIH-3237-1010-NK Details

The recommended torque for the screw terminals of DKIH-3237-1010-NK is 0.5 Nm to 1.5 Nm, as specified by Schurter.
Yes, the DKIH-3237-1010-NK is designed to withstand vibrations up to 10g according to IEC 60068-2-6, making it suitable for high-vibration applications.
The operating temperature range of the DKIH-3237-1010-NK is -40°C to 125°C, making it suitable for high-temperature applications. However, the fuse itself may have a lower temperature rating, so ensure compatibility with the specific fuse used.
The DKIH-3237-1010-NK has a protection rating of IP40, which means it provides protection against solid objects larger than 1 mm, but not against water or moisture. For humid or wet environments, consider using a fuse holder with a higher IP rating or additional protection measures.
The recommended wire size for the screw terminals of DKIH-3237-1010-NK is 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).

Community Provided

System Verified

Community Approved

Use the download button to access the DKIH-3237-1010-NK schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DKIH-, or try a keyword search, such as Mains Filters
